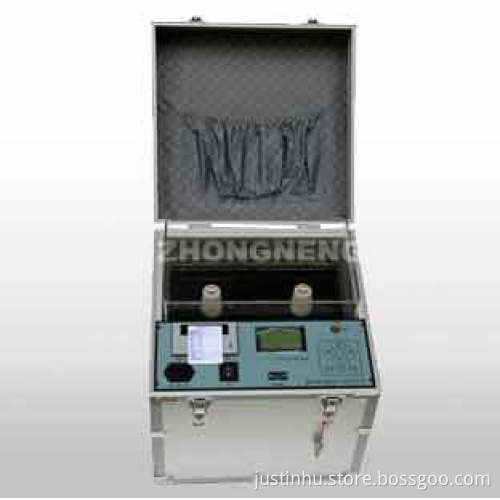

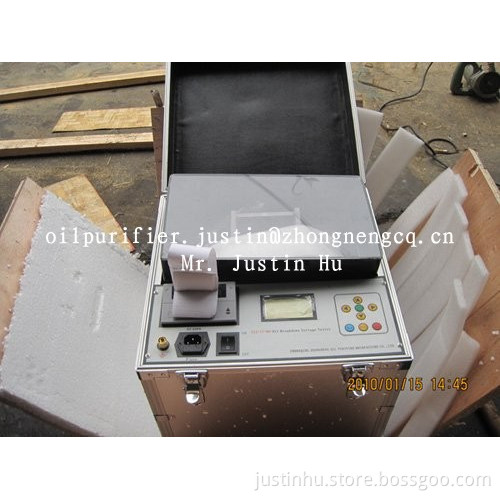

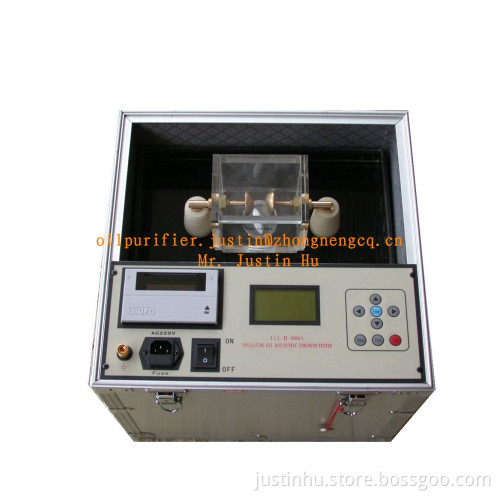

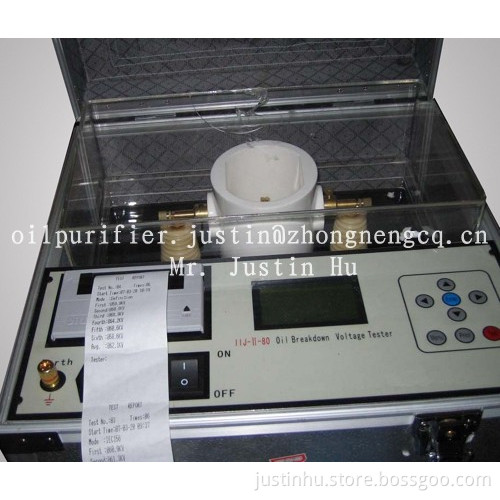

Series IIJ-II BDV Tester for Insulating Oil

Contact person: Justin Hu

Website: http://oilfiltrationcn.diytrade.com

Trade Manager: justinhu888@gmail.com

Skype: justin-htj

Tel: 86-23-68681175
Fax: 86-23-68060921
Mob: 86-15823205723

Introduction:

IIJ-II series fully automatic oil tester is applied to test the insulating oil's dielectric strength, which is designed on the requirement of IEC156 Testing Method of Insulation Oil Medium Strength, which via proper programming, got functions of auto boosting, step down, stirring, display and print out.

Main features:

1. Small and light

2. Can upgrade software through RS232

3. Good performance of anti-jamming and high precision of testing

5. Menu control, simply operate: automatically (just need to press on the key)

6. System time (just for reference) alive under power off.

7. Can storing 99 groups` oil testing data for 100 years.

Advantage:

1. After breakdown of oil medium, HV break off will operate within 10 seconds to enable an auto isolation of control system partly; this effectively safeguards the personnel and equipment safety.
2. It adopts industrial single plate integrated circuit, new-style I/O connecting cup, unique inspection, anti-jamming technology and industrial SCM which is applied to integrate circuit, particular testing and anti-jamming technology, which is largely improved the machine's capacity.

Parameter data:

1. Power supply: AC220V 10%, 50 HZ

2. Output voltage: 60 kV, 80 kV, 100 kV (100 kV should be specially designed)

3. Capacity: 1.2 KVA (for 60kV), 1.6 KVA (for 80 kV), 2.0 KVA (for 100 kV)

4. Pressure increase speed: about 2 KV/S

5. Voltage inspection accuracy: 3%

6. Dielectric strength sensitivity: <2KV

7. Wave from distortion: < 3%

8. Breakdown response time: <10ms

9. Polar distance: 2.5mm

10. Working environment: temperature: 0 to 40 C, humidity: < 85% (Relative Humidity)
