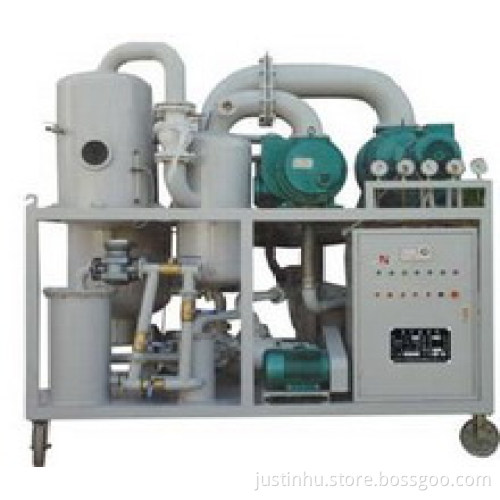

Series ZYD Double Stage Vacuum Insulting Oil Purifier

Contact person: Justin Hu

Website: http://oilfiltrationcn.diytrade.com

Trade Manager: justinhu888@gmail.com

Skype: justin-htj

Tel: 86-23-68681175
Fax: 86-23-68060921
Mob: 86-15823205723

Application:

Series ZYD has been specially designed for regenerating insulating oils in energized or de-energized transformers even when transformer power above 110KV and altitude over 500 meters, as well as purify mutual inductor oil, switch oil and so on.

Features:

1. Operated fully-automatically with PLC controller.

2. The oil of any grades can be treated on line.

3. High vacuum: Ultimate vacuum 5Pa, Working vacuum 35Pa.

4. Duplex 3D stereo-evaporation, eliminating the liquid water quickly.

5. High absorption speed: Absorption speed power 333 L/C.

6. UK G technology---the trace water (such as dissolved water) can be removed effectively.

7. Distinctive combination of double FH trapezoidal network filtering system and high polymer filter.

8. Carbon fiber infrared heating system---make the oil contains zero sum of ethane after the treatment.

9. Special for vacuum oiling and drying for power transmission equipments over 110KV.

Advantages:

1. Compared with the single-stage vacuum oil purifier, this machine is more quickly and completely on water, degas and impurities remove, which recover the oil limiting voltage-withstand function. With the bridge-type vacuum linking system that can purify and be an independent vacuum power supply, this machine can be applied to electric insulation devices.

2. Besides the dewatering, degassing and eliminating particles, this machine can regenerate the seriously deteriorated oil by removing the polarity materials, such as the deep oxides, free carbon effectively, which can make the treated oil reach to the normal index on anti-oxides, acid-alkali water-solubility.

3. Mobile type with trailer, hermetical, canopy-covering, open and frame system.

RECOMMAND PRODUCTS

Product-catalogue:
For Insulating Oil (transformer oil, mutual inductor oil, valve oil and so on)

-Highly Effective Vacuum Oil Purifier (series ZY )
-Computer-Tested Highly Effective Vacuum Oil Purifier (series ZY-A)
-Multi-function Transformer Oil Treatment Machine (series ZYB)
-Double-Stage Highly Effective Vacuum Transformer Oil Purifier (series ZYD)
-Ultra-High Voltage Oil Treatment Equipment (series ZYD-I)

For Lubricant Oil (hydraulic oil, turbine oil, gear oil, heating oil and so on)

-Multi-function Lubricating Oil Purifier (series TYA)
-Highly Effective Vacuum Turbine Oil Purifier (series TY)

-Hydraulic Regeneration Oil Purifier (series TYH)
-Phosphate Ester Fire-Resistant Oil Purifier (series TYA-I)
-Coalescence-Separation Oil Purifier (series TYB)
-Vacuum turbine oil regeneration purification plant (series TY-R)
Centrifugal Vacuum Oil Purifier (series CYA)

Other Kind Plants related:

-Highly Effective Vacuum Engine Oil Purification System (series LYE)

-Portable Oil Purifier (series JL)

-Plate pressure oil purifier plant (series PL)

-Vacuum Diesel Oil Purifier (TYA-C)

-Small Portable Edible Oil Filtration Machine (JL-C)
-Transformer oil regeneration device (series TFR)

-Automatic oil tester for transformer oil (series II-J)
-Coalescence-Separation Oil Filter

All parts are available for supply

All plants can be designed and equipped with:

Enclosed Type (Rain shelter), Trailer, PLC (Programmable Logic Controller)
