Vacuum Transformer Oil Purifier, Oil Filter, Oil Recycling
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 15 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing, China |
|---|---|
| Supply Ability: | 20 |
| Certificate: | ISO9001:2000 CE |

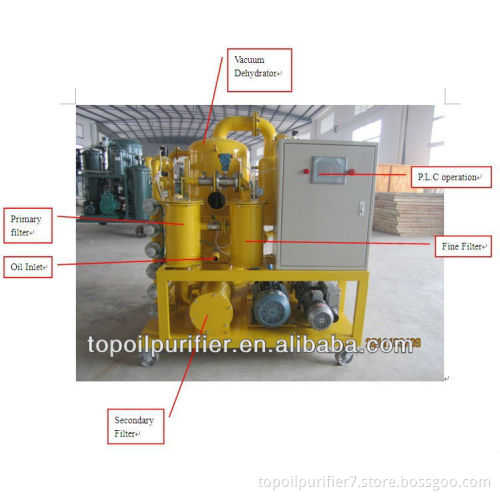

ZYD high vacuum oil purifiers are designed for use in treating electrical insulating oil in the oil-filled electrical equipment.Through the dehydrator, degasification, filtration processes, the dissolved gases and moisture, solid particulate, contamination can be completely removed.
ZYD vacuum oil purifier is widely used in factory workshops,power transmission and generation station. Utilizing ZYD high vacuum oil purifier, the quality of insulating oil can be upgraded
and the deteriorated oil can be reclaimed that could extent the life of insulating oil and ensure safety operation of oil-filled electrical equipment.
Feature:
1, This double stage vacuum transformer oil purifier is high effective with a special roots pump.
2, The vacuum oil purifier is portable and small size, so you can use it everywhere.
3, It is very suit to operate on line. Also it can be used to dry the electric equipment and input the oil into the electric equipment under the vacuum state.

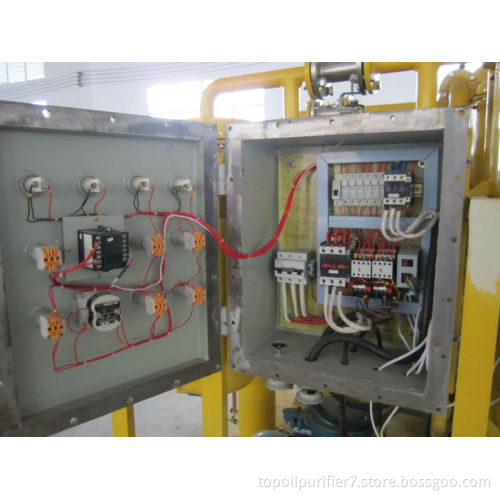

4,The vacuum oil purifier is automatic control.
5, With the alarm, when the temperature and pressure exceed the index, all the parts will stopped.
6. High vacuum limiting vacuum less than 5pa, working vacuum less than 35pa.
7. Environment friendly.
8, Power cost less.
9, Strong and stable.
10, With the engineer installation.
11, We can take the special order as the customer need.
Benefits
Removes Dissolved Moisture Transformer Oil
Reduces combustible gases and oxygen
Improves oil dielectric values
Improves transformer power factor
Extends oil service life
Extends transformer service life and reliability
Advantage:
Comparing with the single-stage vacuum oil purifier, series ZYD adds ROOTS vacuum system, second stage of separating system to improve the effect of purification which dewaters, degases
and removes impurities more quickly, more completely and make the oils limiting voltage-withstand value much higher. This machine also can remove free, soluble water, carbon, free and dissolved
gases and particulate matters from insulating oil effectively and rapidly. As the bridge-type vacuum linking system that can filter and be an independent vacuum power supply, this machine can
be vacuum treating the electric insulating devices. Series ZYD utilizes coacervation technology, coalescing technology, separating technology and refined purification technology.
