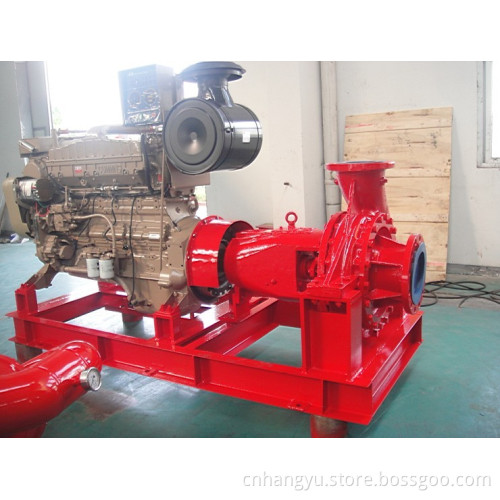

Diesel Engine Fire Fighting Pumps

Specifications FIFI system 1. including fire pump , fire monitor , diesel engine ,control system 2. certificate :CCS , BV , LR ,DNV We can also customize according to your request Fire Pump Type: horizontal single stage,end inlet top outlet centrifugal pump Qty: 1set Certificate: CCS Model: SSCXB250-200 Medium: seawater Capacity: 600 m3/h Pump head: 130m Pump speed: 2100 r/min Power absorbed: 282kw Pump efficiency: 80% Dimension of pump inlet: DN250 Dimension of pump outlet: DN200 Material: Pump shell: Nodular cast iron Impeller: Ni-Al bronze Shaft: stainless steel Bearing: SKF Shaft sealing: soft sealing Fire Monitor 1. Monitor SS100EL Qty: 2sets Pipe: water pipe and jet nozzle Medium: seawater or AFFF Capacity: 300m3/h Operate type: Electrically operated, With 3 phases motors 380V 50Hz IP56 Throw length: 90m Swivelling ranges Rotation: 340° Elevation: -40°to +75° (other swivelling ranges on requirement) Inlet flange: DN100 PN16 Materials: Body: stainless steel 304 Pipe: stainless steel 304 Sealing: NBR Painting: red (RAL3000)
