IACS Approved 300m3/h Sea Water Fire Monitor
  • IACS Approved 300m3/h Sea Water Fire Monitor
IACS Approved 300m3/h Sea Water Fire Monitor

IACS Approved 300m3/h Sea Water Fire Monitor

Payment Type:
T/T
Incoterm:
FOB
Min. Order:
1 Set/Sets
Min. Order:
1 Set/Sets
Delivery Time:
30 Days
Transportation:
Ocean
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 5 sets per month
Payment Type: T/T
Incoterm: FOB
Certificate: ISO,CCS,BV,ABS
Transportation: Ocean
Product Description
Product Description

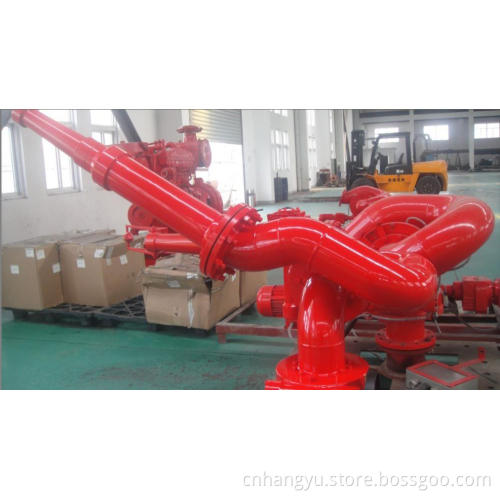

IACS Approved 300m3/h Sea Water Fire Monitor

Company Information

We are a leading supplier of marine Fi-Fi system from China. We have been dedicated in it for about 20 years. At present, the maximal capacity of our fire monitor is 3600m3/h, which supplied a national gap, finished the present situation that Fi-Fi I, Fi-Fi II and Fi-Fi III marine fire fighting system's relying on importing, and enhanced the match capability of China as a strong ship-building country.

We are on of the few companies that can provide either casting monitors or welding monitors in home and overseas. We can supply casting monitors using aluminum alloy, copper alloy or cast-iron and welding monitors using carbon steel or stainless steel. While technical specifications such as flow capacity, actuating pressure, routine torque, light torque, rotating speed, quick rotating speed and so on can be ordered by customers.

Our Fi-Fi systems and fire water monitor for marine are CCS, BV, ABS, GL, DNV, RINA etc classification society approved.

Product Description

General Specification of sea water fire monitor

Model SS65EL SS80EL SS100EL SS150EL SS200EL SS200DEL SS250EL SS300EL SS300DEL
Effective Capacity 2400L/min 4000L/min 6000L/min 18000L/min 26000L/min 26000L/min 32000L/min 60000L/min 60000L/min
Max. Pressure 16Bar
Inlet Flange DN65 PN16 Flange DN100 PN16 Flange DN150 PN16 Flange DN200 PN16 Flange DN250 PN16 Flange DN300 PN16
Outlet Screw Thread Flange Connection
Optional Inlet Flange DN80 PN16 / ANSI2½"/ANSI3" DN100 PN16/ ANSI3" DN150 / ANSI4" DN200 / ANSI6" DN250 / ANSI8" DN250 / ANSI8" DN300 / ANSI10" ANSI12" ANSI 12"
Rotation Range Horizontal 340°
Vertical 90°~ -75° 85°~ -75° 85°~ -75° 75°~ -45° 75°~ -45° 75°~ -45° 75°~ -45° 75°~ -45° 75°~ -45°
Weight 60Kg 75Kg 75Kg 225Kg 750Kg 850Kg 550Kg 800Kg 1000Kg
Materials Body Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy Stainless Steel/Carbon Steel/Anti-corrosion aluminum alloy Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy Anti-corrosion / Aluminum alloy Copper alloy Stainless Steel/Anti-corrosion aluminum alloy/Copper alloy Stainless Steel/Anti-corrosion aluminum alloy/Copper alloy Stainless Steel/Anti-corrosion aluminum alloy/Copper alloy
Sealing NBR
Pipe Hard aluminum alloy Hard aluminum alloy Hard aluminum alloy Hard aluminum alloy Hard aluminum alloy/ Aluminum alloy Hard aluminum alloy Hard aluminum alloy Hard aluminum alloy/Stainless steel Hard aluminum alloy
Flange Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy Stainless Steel/Carbon Steel/Anti-corrosion aluminum alloy Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy Anti-corrosion / Aluminum alloy Copper alloy Stainless Steel/Anti-corrosion aluminum alloy/Copper alloy Stainless Steel/Copper alloy Stainless Steel/Anti-corrosion aluminum alloy/Copper alloy
Painting Red RAL3000
The monitor can be arrested in any horizontal or vertical position
