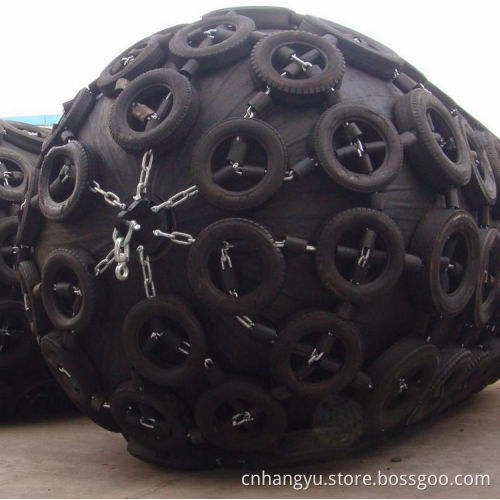

Marine Pneumatic Rubber Fender

Specifications 1.Boat Pneumatic D rubber fender 2.Dia:1.5m Len:3m 3.Sphere weight:320kg 4.Function:Produce reaction of small Marine rubber fender specifications 1. The standard specification of ship rubber fender You can choose the required diameter and effective length to meet your projects (1)Diameter: from 500mm to 4500mm (2)Effective length: from 1000mm to 12000mm The above specifications only are our standard specifications arrange. Can be supplied customized size upon customers' request. Performance characteristics (1)Ship rubber fender is with the use of high quality rubber nylon cord. (2) Using compressed air as damping medium, the rubber can transform flexibly under pressure, with large contact area, small reaction and absorb large amount of energy. (3) When berthing, the ship is almost at a certain angle, the ship rubber fender can realize contact in a certain angle by bringing full play to its performance. (4) Floating on the water surface, even the ship fluctuates and sways resulting from ebb and flow and waves, the pneumatic (5) Simple installation (6)Long service life Nominal size Diameter x Length Initial Intemal Pressure Guaranteed Energy Absorption GEA Reaction Force at GEA Hull Pressure At GEA Satety Valve Setting pressure Testing Pressure Weight of Net Type (Type I) Weight of Sling Type (Type II) Approx Fender Body weight Approx.Weight of Net E R P Chain Net Wire Net Synthetic Fiber Net (mm x mm) (kNm) (kNm) (kN) (kPa) (kPa) (kPa) (kg) (kg) (kg) (kg) (kg) 500 x 1000 50 6 64 132 _ 200 22 110 30 20 32 600 x 1000 50 8 74 126 _ 200 25 120 30 22 36 700 x 1500 50 17 137 135 _ 200 45 150 40 37 55 1000 x 1500 50 32 182 122 _ 200 73 200 80 51 98 1000 x 2000 50 45 257 132 _ 200 88 220 140 57 113 1200 x 1200 50 63 297 126 _ 200 131 320 190 68 156 1350 x 2500 50 102 427 130 _ 200 200 350 200 _ 240 1500 x 3000 50 153 579 132 _ 200 250 530 350 _ 290 1700 x 3000 50 191 639 128 _ 200 290 580 440 _ 330 2000 x 3500 50 308 875 128 _ 200 405 960 640 _ 465 2500 x 4000 50 663 1381 137 175 250 902 1240 910 _ 1080 2500 x 5500 50 943 2019 148 175 250 1090 1850 1160 _ 1320 3300 x 4500 50 1175 1884 130 175 250 1460 1710 1270 _ 1840 3300 x 6500 50 1814 3015 146 175 250 1870 2570 1910 _ 2250
