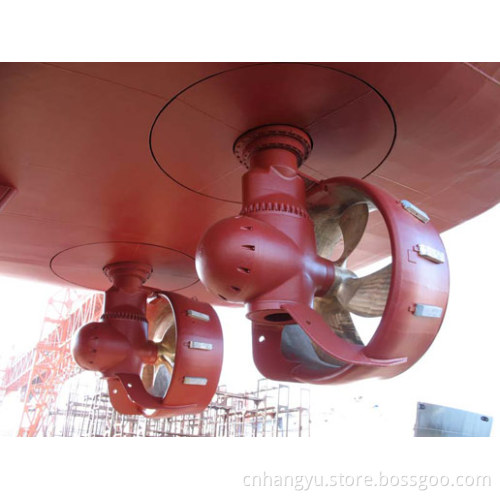

L-Drive Azimuth Thruster

L-Drive Azimuth Thruster 1.Diameter 500-3000mm. 2.FPP or CPP propeller. 3.Eletric or engine drive. 4.CCS ,BV ,ABS,NK, KR, DNV, RINA,LR, GL. L-drive Azimuth Thruster : Bow and tunnel thrusters are primarily used for docking, slow speed maneuvering, emergency steering and station keeping at zero or slow forward speed. They are installed transversely in the bow or the stern of a vessel. Electric L-drive Azimuth Thrusters Electric drive bow thrusters with fixed pitch propeller are available from 250 to 10,750 HP (8.0MW). They are designed for variable speed electric motor input, either DC with SCR control systems or AC with variable frequency drives. Most are used in dynamic positioning applications. Engine Driven L-drive Azimuth Thrusters Engine driven bow thrusters for direct engine drive are available in the range of 250 to 3,000 HP. The engine must be provided with a marine gear with a reduction ratio to match the input speed. A cardan shaft connects between the output shaft of the marine gear and the input shaft. Hydraulic L-drive Azimuth Thrusters We offer a great line of hydraulic bow thrusters. They are used all over the world, many of them in dynamic positioning applications. hydraulic bow thrusters are available from 35hp to 2,000hp. Geared Bow thrusters for electric or direct engine drive are available from 250 to 3,000 HP. Propeller diameter (mm) Power (KW) Max thrust (KN) Propeller type 600 20~75 16 FPP 900 75~210 33 FPP 1100 200~330 46 FPP,CPP 1300 310~470 66 FPP,CPP 1650 450~760 108 FPP,CPP 1850 720~1020 132 FPP,CPP 2000 980~1270 165 FPP,CPP 2250 1200~1550 235 FPP,CPP 2500 1450~2100 326 FPP,CPP 2750 2060~2480 378 FPP,CPP 3000 2300~2930 462 FPP,CPP
