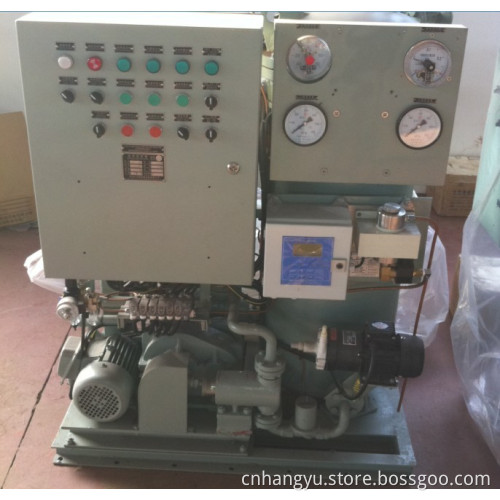

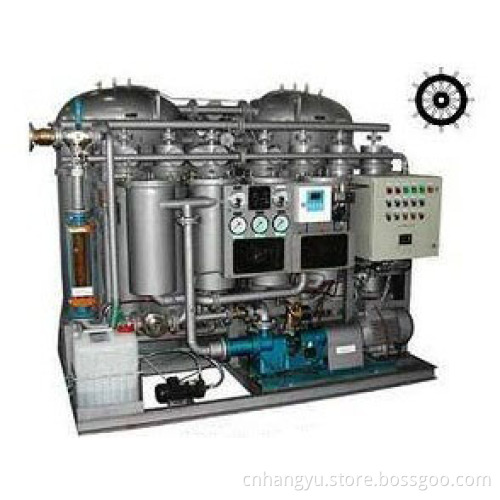

15PPM Bilge Marine Oily Water Separator

YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) is a kind of environmental protection product designed based on International Maritime Organization IMO MEPC 107(49) standard, the oil content in effluent water ≤15ppm.

YWC Series 15ppm Bilge Separator (15ppm Bilge Separator) of 9 types with the capacity from 0.25m3/h to 5.00 m3/h, The smallest type is YWC-0.25 which can be installed on ship less than 1000DWT.The biggest type is YWC-5.00 which can be installed on ship more than 300 thousand DWT. This separator can also be used in industrial and petroleum, besides in ship vessels

2. Main parameters

(1)capacity : from 0.25m3/h to 5m3/h

 (2) Oil content in the effluent water ≤ 15 ppm

(3) Meet the standard of IMO MEPC.107(49)

(4) Heating mode : steam /electric heating

(5) CCS ,EC certificate

(6) Applicable ship : less than 1000 DWT to above 300 KDWT

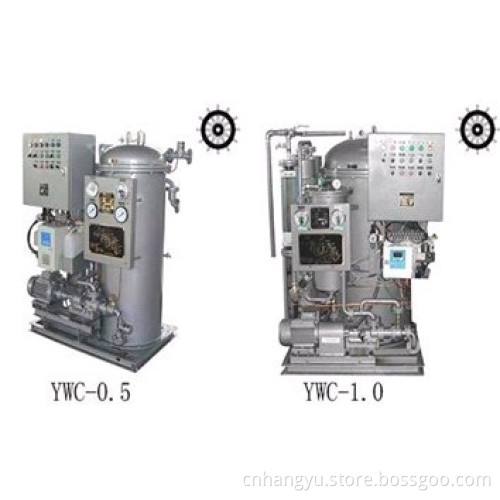

(7) there are 9 types with different capacities

3. Types

0.25 m3/h,     0.5m3/h,    1m3/h,   1.5m3/h,   2m3/h ,  2.5m3/h,  3m3/h ,4m3/h
