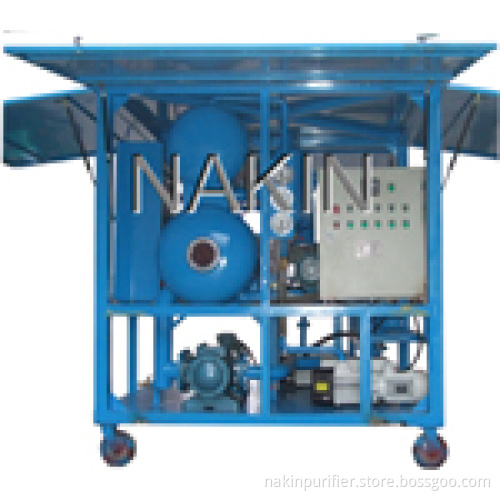

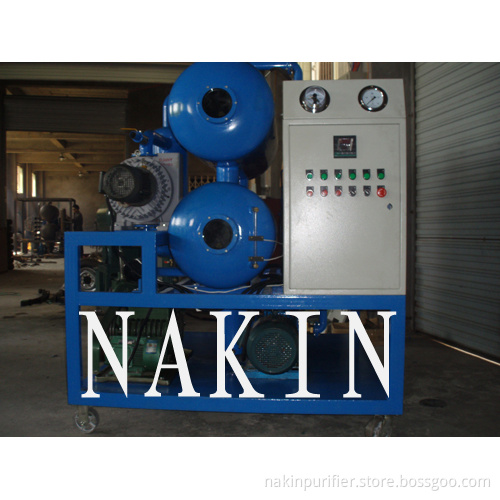

ZYD Double-stage transformer oil purifier

Application
    Series ZYD Double-stage-vacuum transformer oil purifier can completely and quickly remove water, trace water, gas, particles as well as other harmful ingredients from oil to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally. Series ZYD vacuum oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work onsite. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

Features
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. Special oil pump is suitable for working under high vacuum states, low noise, working reliable.
9. Photoelectric oil foam sensor, automatic eliminating oil foam, making sure vacuum pump working safe and stable.
10. Optional choice of installing moisture sensor to test oil's moisture online.
11. Functions of live line work onsite, vacuum drying and vacuum oiling.

Advantages
    Comparing with traditional vacuum transformer oil purifier, Series ZYD oil purifier can increase the working effectiveness more than three times, more quickly and completely dewater, degas, remove particles to get higher dielectric strength. This equipment can be used as independent vacuum source with the functions of vacuum drying and vacuum oiling for the electric plants.
