Chongqing Ningcai Generate Power Co.,Ltd is a industry and trade co., LTD major in production & Sales generator set equipment. (SKYPE:liulin948)

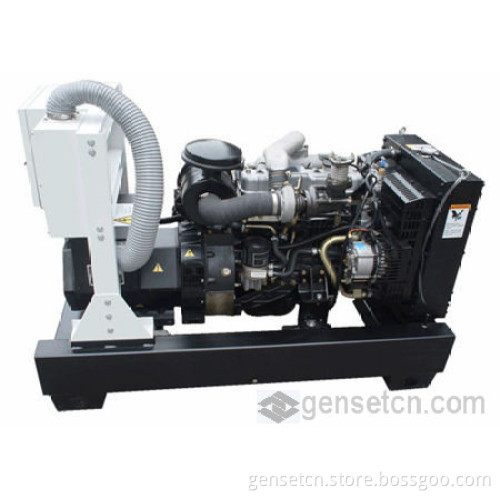

Isuzu series diesel generator adopts with Isuzu brand engine made by China Foton Company, whose 4JB serie is developed in cooperation with Austria AVL company on the base of ISUZU engine. It is optimized in fueling can cooling system according to the charactor of diesel genset. It is small-sized and compact with high adaptability and reliability and is an ideal genset in the 20kW to 40kW serie gensets.
| GENSET MODEL | GPDIU-24 | GPDIU-26 | GPDIU-37 | GPDIU-26 | GPDIU-34 | GPDIU-45 |
| Prime Power | 20KW/ | 24KW/ | 33KW/ | 24KW/ | 30KW/ | 40KW/ |
| 25KVA | 30KVA | 41KVA | 30KVA | 37.5KVA | 50KVA | |
| Standby Power | 24KW/ | 26KW/ | 37KW/ | 26KW/ | 34KW/ | 45KW/ |
| 30KVA | 33KVA | 46KVA | 33KVA | 42.5KVA | 56KVA | |
| DIESEL ENGINE MODEL | 4JB1 | 4JB1T | 4JB1TT | 4JB1 | 4JB1T | 4JB1TT |
| 1500RPM, 50Hz | 1800RPM, 60Hz | |||||
| Engine Prime Output(KW) | 24 | 28 | 36 | 28 | 34 | 43 |
| Aspiration | Natural | Turbocharged | Turbocharged | Natural | Turbocharged | Turbocharged |
| Bore X Stroke(mm) | 93X102 | |||||
| Cubic Capacity (L) | 2.771 | |||||
| Piston Speed (m/s) | 5.1 m/s | |||||
| Compression Ratio | 18.2:1 | |||||
| Speed Stability Bandwidth | ≤±0.8% | |||||
| Steedy Governing Rate | ≤5% | |||||
| Acoustic Pressure | 91dBA (at full load, 1m distance) | |||||
| Exhaust Temperature | 500℃ | |||||
| Exhaust Back Pressure | 15Kpa | |||||
| Lube Temperature/ Capacity | 120℃/5.5L | |||||
| Cooling System Volume | 4.5L (except water tank) | |||||
| Rating Fuel Consumption(L/h) | 5.6 | 6.4 | 8.5 | 6.5 | 7.8 | 9.4 |
| ALTERNATOR MODEL | YHG-20KW | YHG-24KW | YHG-33KW | YHG-24KW | YHG-30KW | YHG-40KW |
| Continuous output (kw) | 20 | 24 | 33 | 24 | 30 | 40 |
| Voltage Regulation | ±1.0% with 4% engine governing | |||||
| Waveform Distortion | No load <1.5% and non- distorting balance linear load <5% | |||||
| THF/ TIF | <2%/<50 | |||||
| Open type | 1750*700*1100 | |||||
| dimensions(LxWxH) mm | ||||||

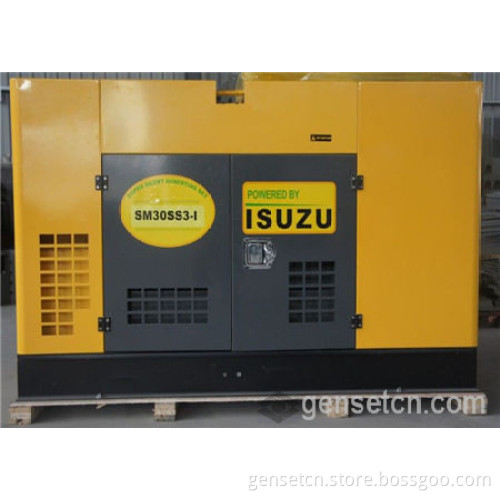

| Slient type | 1840*770*1150 | |||||
| dimensions(LxWxH) mm | ||||||
