1kw-30kw LPG Generator
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | T/T |
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description
Chongqing Ningcai Generate Power Co.,Ltd is a industry and trade co., LTD major in production & Sales generator set equipment. (SKYPE:liulin948)

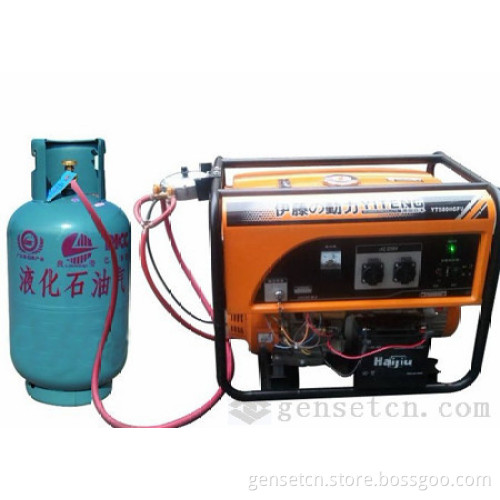

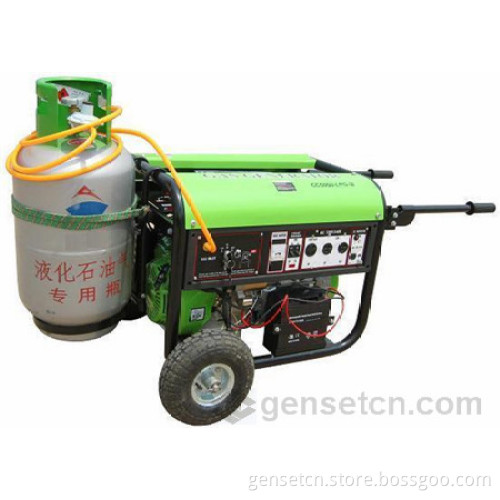

1kw-30kw LPG Generator Set
| Genset Model | GPGA-2F | GPGA-5F | |
| LPG Generator standby(kVA) | 2.6 | 6.3 | |
| Spec. | standby power(kVA/kW) | 2.6/2.1 | 6.3/5.0 |
| prime power(kVA/kW) | 2.4/1.9 | 5.6/4.5 | |
| frequency(Hz) | 50 | 50 | |
| rated voltage(V) | 230 | 230 | |
| rated current(A) | 8.3 | 19.6 | |
| power factor(COSΦ) | 1 | 1 | |
| Engine | model | M-168F | M-190F |
| displacement(cc) | 196 | 420 | |
| speed(RPM) | 3000 | 3000 | |
| compression ratio | 9.2:1 | 9.2:1 | |
| bore*stroke(mm*mm) | 68*54 | 90*66 | |
| starting method | recoil | recoil | |
| cooling method | air cooled | air cooled | |
| oil capacity(L) | 0.6 | 1.1 | |
| oil grade | SAE 10W30 SG or SF | ||
| speed governor | mechanical | mechanical | |
| Alternator | model | SCB160-2.0 | SCB190-4.5 |
| phase | single phase | single phase | |
| connecting method | direct-coupled | direct-coupled | |
| way of excitation | brush | brush | |
| insulation grade | H level | H level | |
| Generator Set | display | pointer | pointer |
| ATS | without | without | |
| fuel | NG/LPG | NG/LPG | |
| gas inlet pressure(kPa) | 3-5kPa | 3-5kPa | |
| dimension(mm*mm*mm) | 590*430*460 | 680*520*550 | |
| net weight(kg) | 46 | 79 | |
| noise at 7 meters(dB(A)) | 72 | 75 | |
| handles and wheels | optional | optional | |
| protection level | IP23 | IP23 | |
| warranty period(hrs.) | 1000 | 1000 | |
| NG consumption(m³/kW.h) | 0.3 | 0.3 | |
| package | carton | carton | |
| packing dimension(mm*mm*mm) | 630*470*500 | 720*560*590 | |
