Hot 360 Degree Rotation CCTV Camera with DVR
1) Applications:
1. Well drilling, water well inspection,
2. oil field,
3. coal field,
4. engineering geology,
5. dam, reservoir, oceaneering
2) Specification:
| No. | Product Configurations | Dimension | Specification |

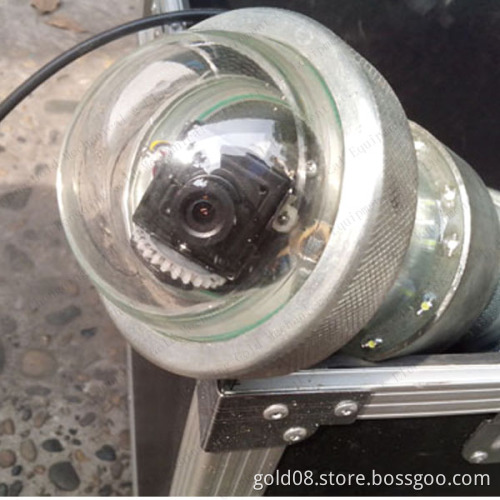

| 1 | Probe | Dia.: 80mm Length:470mm |
(1) Front lens are imported resins, (2) Not easy damaged, (3) Pressure is 16-30Mpa (can be under 3000m deep water) (4) Light: 6-12 LED Lights |
| 2 | Camera |
(1) Japan SONY inductor 1/3'' CCD, (2) Image definition is HD 750 TVL (3 Watertight (4) Camera Angle: 180/360 degree |
|
| 3 | Professional logging cable |
Length: 0-2500m(optional) |
(1) With steel wire, (2) Tension is 150kg, (3) Destroy tension is 260kg |
| 4 | Main Control Host |
(1) 220V/380V/12V optional. (2) LCD dispaly can be 8/15inches. (3) Aircraft grade aluminum alloay material |
|
| 5 | Downhole Pulley | Can change the booth size according to the well mouth size | |
| 6 | Logging Winch | Hand/Electrical winch | |
| 7 | Lithography System |
(1) SONY disc-carving machine,(optional) (2) Discs and U disk can be used |
