Hot Sale 200-500M Underwater Well Inspection Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Supply Ability:	1000

Product Description

Applications:

1. Well drilling, water well, oil field, coal field, engineering geology, dam, reservoir, oceaneering

2. Underwater survey

3. Stratum structure divide

4. Well wall stratum crack

5. Karst development discrimination

6. Distinguish fractured development zone

7. Determine the karst distribution position

8. Longtime underground borehole monitoring

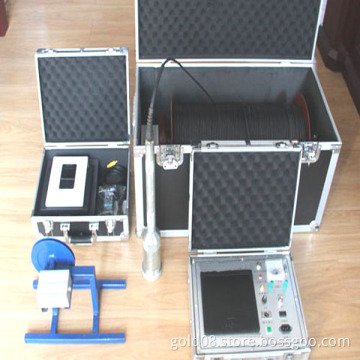

No.	Product Configurations	Dimension	Specification

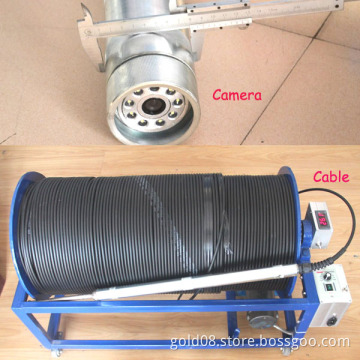

1	Probe	Dia.: 50/80mm Length:470mm	(1) Front lens are imported resins, (2) Not easy damaged, (3) Pressure is 1-6Mpa (can be under 3000m deep water) (4) Light: 9-11 LED Lights
2	Camera		(1) Japan SONY inductor 1/3'' CCD, (2) Image definition is HD 750 TVL (3 Watertight (4) Camera Angle: 180 degree
3	Professional logging cable	Length: 200-500m (optional)	(1) With steel wire, (2) Tension is 150kg, (3) Destroy tension is 260kg

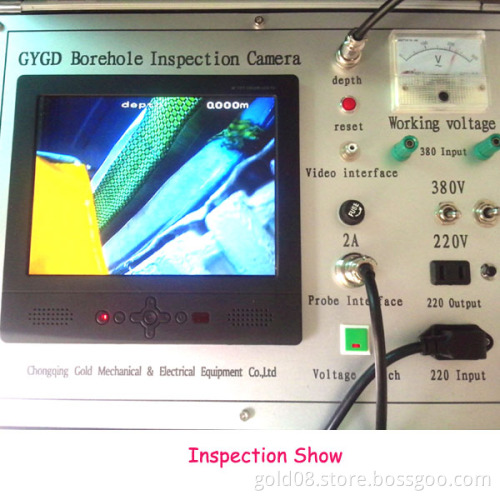

4	Main Control Host		(1) 220V/380V/12V optional. (2) LCD dispaly can be 8 /14 inches. (3) Aircraft grade aluminum alloay material
5	Downhole Pulley		Can change the booth size according to the well mouth size
6	Logging Winch		Hand/Electrical winch
7	Lithography System		(1) SONY disc-carving machine, (2) Discs and U disk can be used
