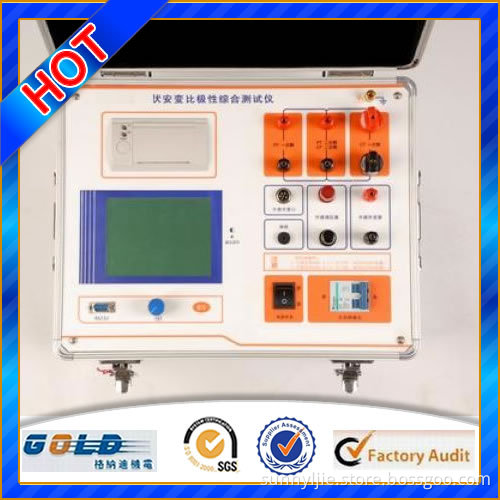

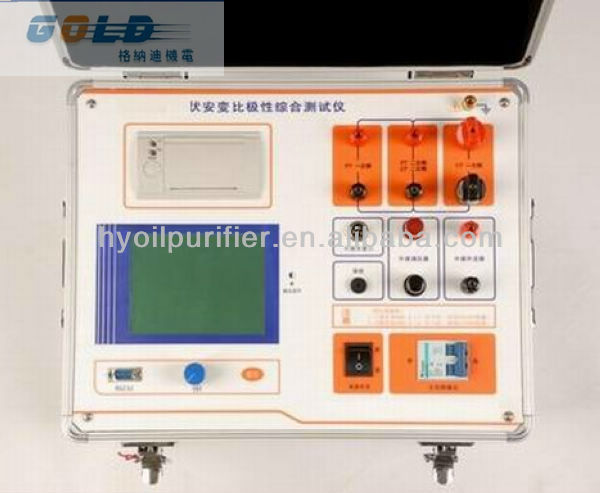

GDVA-402 Current Transformer transformation ratio instrument /potential transformer instrument

GDVA-402 CT PT Tester

I Brief Introduction

GDVA-402 is a special instrument for testing characteristic of CT and PT .The
tester can finish CT/PT transformation ratio test, CT/PT polarity test, volt-ampere
feature curve drawing and CT error drawing. It has large output, high
precision,stable performance and automatic testing.

II Product Function

1 CT/PT transformation ratio test
2 CT /PT polarity test
3 CT /PT volt-ampere feature curve measurement
4 CT ratio error measurement
5 Error curve measurement
6 Result print
7Unload data to PC
8 PC online test.

III Technical parameter

	Input voltage	Output scope		Measuring scope		Measuring degree
Device main engine	220V	0~600V,0~20A		0~600V,0~20A		0.5%
	380V	0~1000V,0~20A		0~1000V,0~20A		0.5%
	220V	0~600A		0~600A		Transformation ratio measuring precision 1%
External voltage raising machine	220V	0~1650V,0~3A		0~1650V,0~3A		0.5%
	380V	0~2000V,0~3A		0~2000V,0~3A		0.5%
External current raising machine	220V	0~1000A		0~1000A		Transformation ratio measuring precision 1%
External voltage adjustment machine				0~1000V,0~30A		0.5%
Device working power	AC 220V/380V 50HZ		External dimensions		420×330×320mm3		Weight	24kg
