Gold GD-261A pensky-martensclosed cup flash point tester
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 15 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Supply Ability: | 300 |
| Certificate: | ISO |
Gold GD-261A pensky-martensclosed cup flash point tester
Application
Gold
GD-261A pensky-martensclosed cup flash point tester is used to
determine flash point of specimen under specified condition, by closed cup
method. It is widely used in petroleum product industry, related education
school, scientific research units and other related departments.
The flash
point of a specimen is the lowest temperature at which it can vaporize to form
an ignitable mixture in air. It is one measure of the tendency of the test
specimen to form a flammable mixture with air under controlled laboratory
conditions.
Standards
|
STANDARDS |
ISO2719-2002 |
ASTM D93 |
GB/T 261-2008 |
Note: this tester can conform to but not limit to the standards above, for more standards conformance, please contact us.
Main technical specifications and parameters
| Power supply | AC(220±10%)V, 50Hz | ||
| Temperature measurement | Measuring range: Room temperature~350°C | ||
| Test range of flash point: 41°C~350°C | |||
| Flash point≤104°C: error ≤2°C | |||
| Flash point>104°C: error ≤6°C | |||
| Accuracy: 0.1°C | |||
| Heating rate | Procedure A: (5~6)°C/min | ||
| Procedure B:(1~1.6)°C/min | |||
| Stirring rate | Procedure A: (90~120)RPM | ||
| Procedure B: (250±10)RPM | |||
| Igniting mode | Igniting source: gas(or other civilian fuels,the same below) | ||
| Electric ignition. Gas flame diameter:3.2mm~4.8mm | |||
| Ambient temperature | ≤ 40°C | ||
| Relative humidity | ≤ 80% | ||
| Total power consumption | ≤ 350W | ||
Main technical features
1. Simulation tracking displays function curves of heating up and test time.
2. Equipped with the English prompt function of mis-operation.
3. Equipped with prompt function of test date,test time and other parameters.
4. Automatically calibrate the effect of atmospheric pressure to test and calculate the corrected value.
5. Differential coefficient detection.Automatically correct the system deviation.
6. Automatically open the lid,detect the flash point and print test data.
7. The test arm rises up and lowers down automatically.
8. Igniting with electric igniting gun,forced air cooling.(GD-3536D Fully Automated PMCC Flash Point Tester has the funtion of automatic innition.)
|
Payment & Shipping Terms |
Supply Capacity |
||
|
Payment term : |
T/T or L/C |
Production capacity : |
500pcs/month |
|
MOQ: |
1 pc |
Packing : |
Wooden case |
|
Price |
negotiable |
Delivery way |
By Air |
|
Means of transport : |
FOB , CIF , CFR |
Delivery time : |
10 days |
After-sales Service
1. Warranty :one year
2.Engineers available to service machinery overseas
3.Provide free installation and debugging, staff training, technical guidance
Company Show

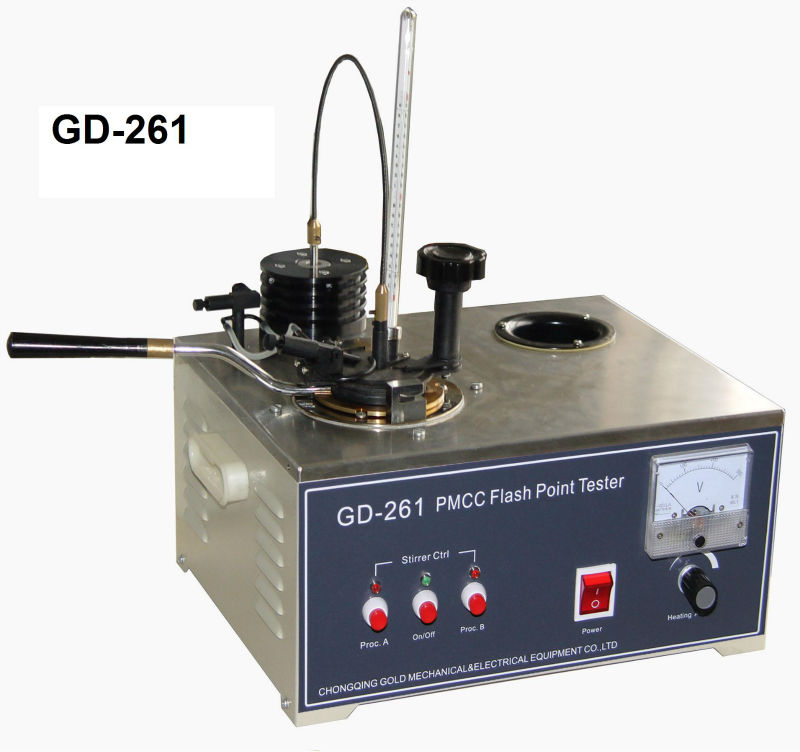

GD-261 Closed Cup Flash Point tester
Any More Questions ,Pls Let Us Know ,We are at Service Any Time
