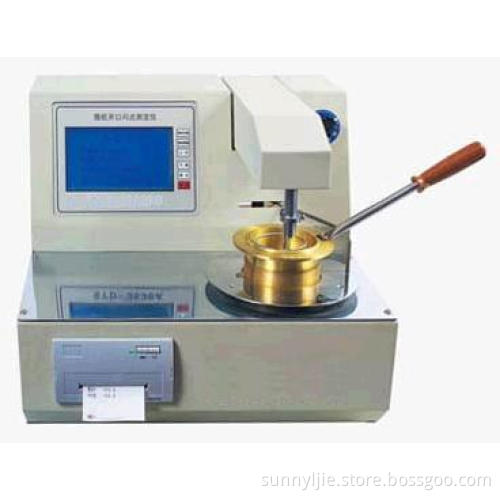

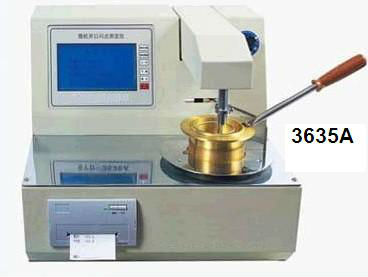

GD-3536A Automatic Cleveland Open Cup Flash Point test equipment /oil flash point test equipment

Purpose

This GD-3536A Automatic Cleveland Open Cup Flash Point testing equipment is designed and made as per GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points- Cleveland open cup method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester. It is applicable to all petroleum products with flash points above 79°C and below 400°C except fuel oils.

Technical parameters

Model	GD-3536A Automatic Cleveland Open Cup Flash Point testing equipment
Power supply	AC 220 V±10%, 50 Hz
Temperature measurement	Full scale: Ambient temperature to 300 °C
	Repeatability: ≤8°C
	Reproducibility: ≤16°C
	Resolution: 0.1°C
	Precision: 0.5%
Basic parameters	Temperature rising speed: as per GB/T3536
	Ignition mode: by an electric flame (gas flame is 3 to 4 mm);
Ambient temperature	10~40°C
Relative humidity	≤80%
Total power consumption	not more than 500 W

Characteristics

1. This instrument adopts LCD screen to display and full English man-machine interface. It can preset expected flash point temperature, sample mark number, barometric pressure and other parameters.It has menu prompt and input guide.
2. It adopts simulation tracking to display the function curve of temperature rising and test time. It has the functions of English mis-operation prompt,test date,test time and other parameters
3. Automatically calibrate the effect of atmospheric pressure to test and calculate the corrected value.
4. Differential coefficient detection.Automatically correct the system deviation.
5. Automatically open the lid,detect the flash point and print test data.The test arm automatically rise up and lower down.
6. Beautiful design,safe and convenient to operate
