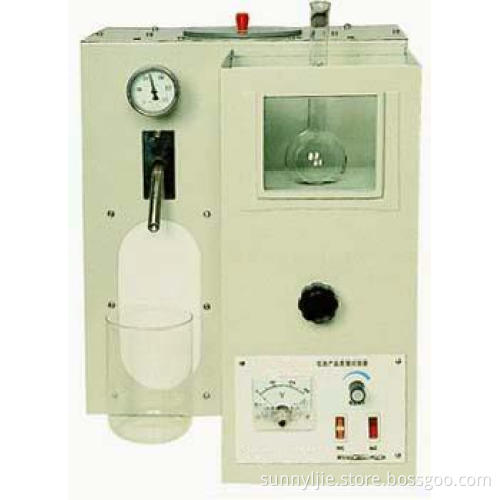

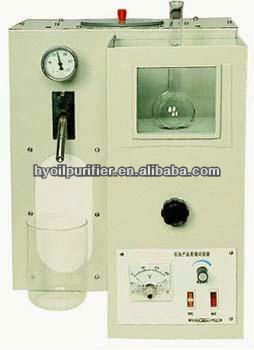

GD-6536 distillation Lab Equipment /Petroleum Products Distillation lab Equipment /Distillation Characteristics lab Equipment
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 15 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Supply Ability: | 300 |
| Certificate: | ISO |
| Model | GD-6536 Petroleum Products Distillation Lab Equipment | |
| Power supply | AC 220 V±10%, 50 Hz | |
| Heating power | 1000 W | |
| Ambient temperature | room temperature~+35 °C | |
| Relative humidity | ≤85% | |
| Distilling Flask diameter | Φ69±1 | |
| inner diameter of bottleneck | Φ17±1 | |
| Solidifying Tube | Φ14×1 | |
| Dimension | 59*48*62cm | |
| Weight | 22kg | |
III Characteristics
(1)
The furnace is composed of silicon carbonized furnace base, heating wire of 1000
W, 220V and high temperature resistant silicon carbonized plate. The height of
the furnace can be adjusted by the height adjustment knob, and the heating power
of the furnace is controlled by the voltage adjustment knob on the control
panel.
(2) The movable plates of furnace are made of silicon carbonized materials. The
diameter of hole in the plates is Φ38 mm or Φ50 mm.
(3) The water bath is composed of overflow tube, temperature adjustment tube and
bath.
(4) The furnace case is made of cold rolling steel. There is an observation window at the upper section in the front of the furnace case. The furnace case is used for installing furnace and distillation flask. The circuit controlling section is at the lower section of the furnace case.
|

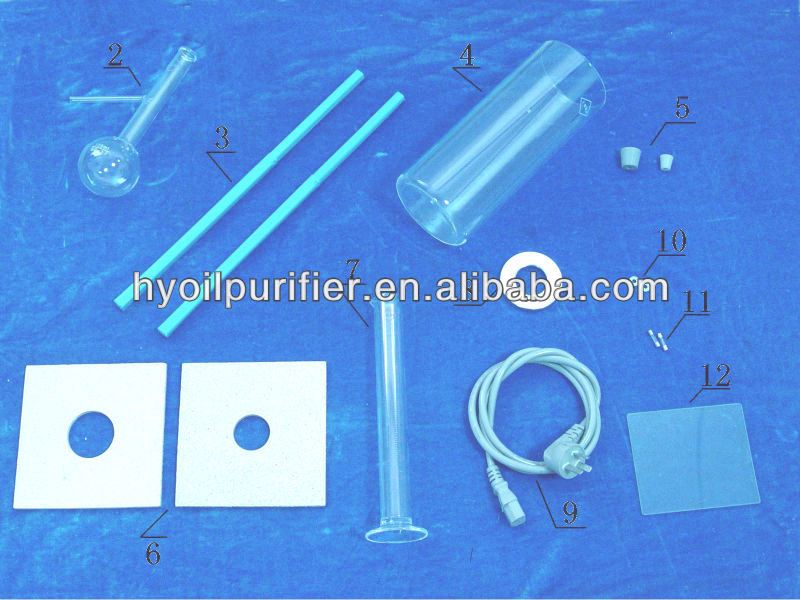

2 |
Distillation flask (125 ml) |
Piece |
1 |
|
3 |
Thermometer -2 °C~300 °C, -2 °C~400 °C |
Piece |
1 for each |
|
4 |
Glass container (Φ100mm×240mm) |
Piece |
1 |
|
5 |
Silica gel stopper (3#, 4#) |
Piece |
2 for each |
|
6 |
Silicon carbonized plate (Φ38mm, Φ50mm) |
Piece |
2 for each |
|
7 |
Graduated flask (100 ml) |
Piece |
1 |
|
8 |
Iron weight |
Piece |
1 |
|
9 |
Power supply wire (250 V 6 A) |
Piece |
1 |
|
10 |
Stopping ring for thermometer (1#) |
Piece |
4 |
|
11 |
Fuse 6 A (Φ5×20) |
Piece |
2 |
|
12 |
observation window glass |
Piece |
1 |
