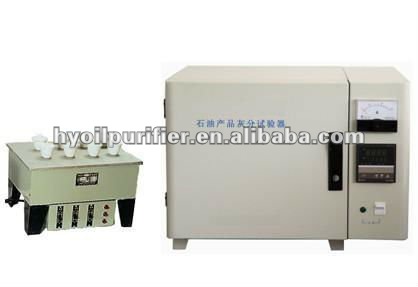

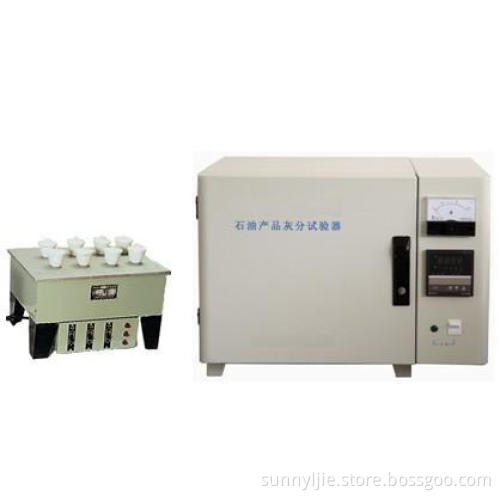

GD-508 Petroleum Product Ash Content Tester

I Brief Introduction

The Ash Content Tester is designed and made as per the National Standard GB/T508 [Test Methods for Ash Content of Petroleum Products". It is suitable to determine ash content of petroleum products. The instrument is not suitable to determine petroleum product added ash-forming additive (including certain phosphorus compounds), lubricating oils containing lead, and used engine cranked oils.

II Technical parameters

Model	GD-508 Petroleum Products Ash Content Tester
Resistance furnace	Power supply: AC220V±10%, 50 Hz
	Rated power: 2.5 kW
	Heating range: ambient temperature~1000°C
	Controlling temperature: 775±25°C
	Temperature controlling device: thermocouple
	Temperature rising time: ≤60 min
	Furnace temperature uniformity: ≤15°C
	Ambient temperature: 5°C~40°C
	Relative humidity: ≤80%
	Furnace chamber size (mm): 200mm×120mm×80mm (L×W×H)
Heating plate	Power supply: AC220V±10%, 50Hz
	Rated power: 2.5 kW
	Heating mode: by three groups of heater. The power of each group is 0.8 kW. They can be used separately or at the same time.
	Height above sea level at working site: not higher than 1000 meter
	Ambient temperature: 5°C~40°C
	Relative humidity: ≤ 80%
	Plate size: 450mm×350 mm
Ceramic crucible	Size: 50 ml, 100 ml
