GD-6536B2 Low Temperature Laboratory Distillation Tester/ Petroleum Products Distillation Tester
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 15 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Supply Ability: | 300 |
| Certificate: | ISO |

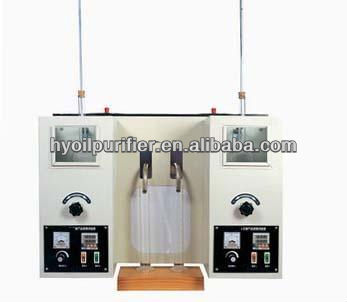

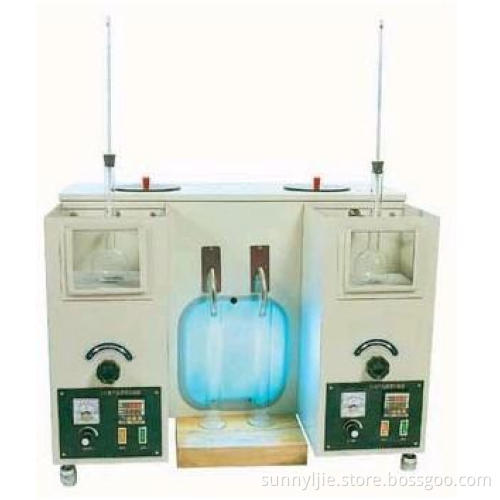

GD-6536B Low Temperature Petroleum Product Distillation Tester is designed and made as per the National Standard GB/T6536 [Test Methods for Distillation Characteristics of Petroleum Products at Barometric Pressure". The Petroleum Products Distillation Tester is suitable to determine distillation characteristics of natural gasoline, vehicle gasoline, aviation gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and similar petroleum products.
| Model | GD-6536B Petroleum Products Distillation Tester(Low Temperature Double-units ) | |
| Power supply | AC(220±10%)V, 50Hz | |
| Heating power of electric furnace | 1000W×2 | |
| Capacity of measuring cylinder | 100ml, division value is 1ml | |
| Distillation flask | 125ml,meet the requirements of GB/T 6536 | |
| Active plate of electric furnace | silicon carbide, bore diameter is: φ32mm, φ38mm, φ50mm | |
| Temperature controller | Control range: 0°C~60°C | |
| Accuracy: ±0.5°C | ||
| Temperature display: LED | ||
| Ambient temperature | ≤30°C | |
| Relative humidity | ≤85% | |
| Cooling system | New type refrigeration compressor | |
| Overall power consumption | ≤ 4000W | |
| Overall dimension | :730mm×530mm×580mm | |
| Weight | 63kg | |
III Characteristics
1.according to ASTM D86
2.test
gasoline,aviation gasoline,jet fuel
3.test boiling point,naphtha,diesel
oi,distillate fuel
