Product Description
Product Description

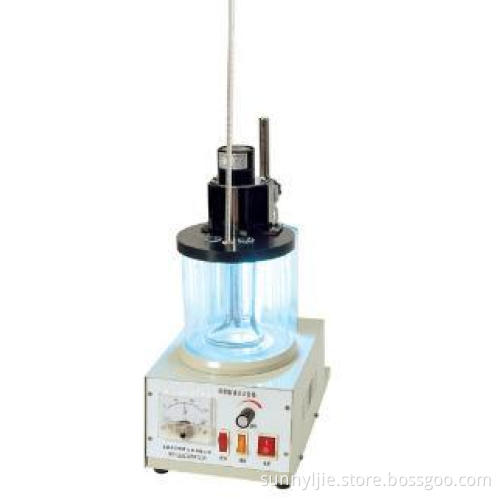

GD-4929 Oil Bath dropping point tester of lubricating grease
The Oil
Bath dropping point tester is designed and made as per the National Standard
GB/T4929 [Test Methods for Dropping Point of Lubricating Grease". The Oil Bath
dropping point tester is suitable to determine dropping point of lubricating
grease.
Technical
parameters
1. Power
supply: AC 220V±10%, 50 Hz;
2. Oil
bath: It is a beaker of 600 ml;
3. Grease
cup: It is made of chromium-plated brass; its inner diameter is Φ9.92mm; orifice
is Φ2.8mm; height is 12 mm;
4. Test
tube: a heat-resistant borosilicate glass test tube with rim; its inner diameter
is 11.1 mm to 12.7 mm; there are three indentation for holding grease cup about
19 mm from bottom, equally spaced on the circumference.
5.
Thermometer:
(1)
Measurement range: -5~300°C;
(2) Scale
division: 1 °C;
(3)
Immersion depth: 76 mm;
(4) Total
length: 390 mm;
6. Heater:
800 W;
7.
Stirring motor: 60 RPM;
8. Ambient
temperature: -10~+40°C;
9.
Relative humidity: ≤85%;
10. Total
power consumption: not more than 900 W;
|
