GDE-1B Engler Viscometer price /Engler viscosity Viscometer price (Double Units)

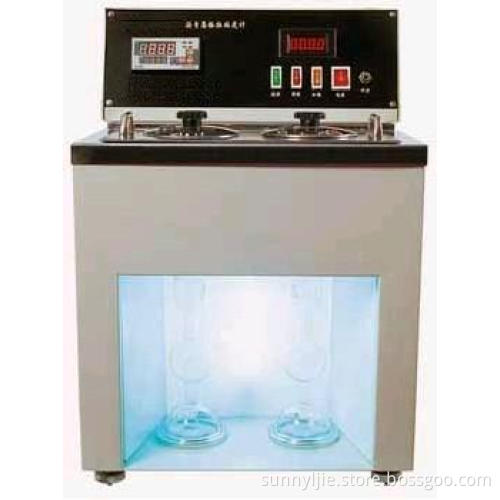

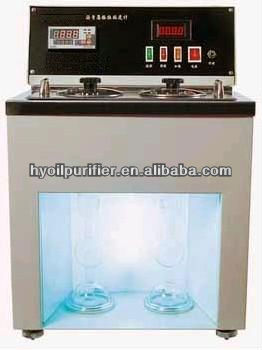

GDE-1B Engler Viscometer /Engler viscosity tester (Double Units)







I Brief Introduction



The  Engler Viscometer is designed and made as per the National Standard GB/T266 [Test Methods for Engler Viscosity of Petroleum Products" and the Industry Standard JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. It is used to determine the ratio obtained by dividing the time of flow, in s, of 200 ml of material using an Engler viscometer at a selected temperature by a factor representing the time of flow, in s, for an equal volume of water at 20 °C. The ratio is the Engler viscosity of the sample.

The instrument can make determination for 2 samples at the same time in the same temperature environment. It can also calculate the average value of these test results. It is the best instrument for Engler viscosity of petroleum products and bituminous materials determination.







II  Technical parameters



Model	GDE-1B Petroleun products engler viscometer(Double Unit)
Power supply	AC 220V±10%, 50Hz
Standard water value	51±1 s
Temperature range	0~100°C
Temperature controlling accuracy	±0.1°C
Engler viscometer thermometer	as per GB/T514
Graduated flask	200±0.2ml (50±0.2ml for bituminous materials)
Inner container	Made by stainless steel
Timer	Max is 9999 s
Timing mode	timing by a LED
Heating power	700 W
Ambient temperature	-10~+40°C
Relative humidity	≤85%
Total power consumption	not more than 800 W
Dimension	64*49*45cm
Weight	40kg





III Characteristics



1.Engler viscomter for petroleum product;
2.LCD display;
3.51+/-1s.
4.Favorble price
