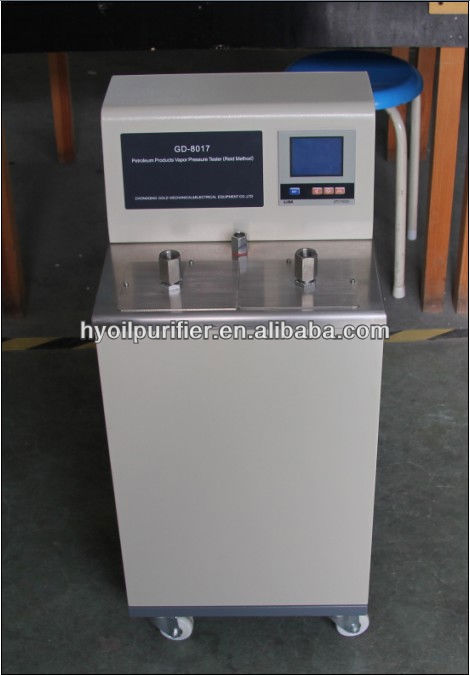

GD--8017 Petroleum Products Vapor Pressure Tester (Reid Method )
I Brief Introduction
The instrument is designed and made as per the national standard of People`s Republic of China GB/T8017 Test Method for Vapor Pressure of Petroleum Products (Reid Methods). It is suitable to determine vapor pressure of gasoline, volatile crude oil and other volatile petroleum products.
II Main Technical Parameter
| Model | GD-8017 Petroleum Products Vapor Pressure Tester(Reid Method ) | |
| Power supply | AC 220 V±10%, 50 Hz | |
| Heating power of water bath | 1600 W | |
| Temperature controlling range of water bath | room temperature~90 °C | |
| Temperature controlling accuracy of water bath | ±0.1 °C | |
| Pressure meter accuracy | ±0.4% | |
| Ambient temperature | -10°C~35 °C | |
| Relative humidity | ≤85% | |
| Total power consumption | ≤1700 W | |
III Product Compnent
|
No |
Name |
Unit |
Quantity |
|
1 |
Water bath and temperature controlling device |
Set |
1 |
|
2 |
Single opening pressure bomb |
Set |
1 |
|
3 |
Pressure meter (0~0.1 ) MPa |
Piece |
2 |
|
4 |
Mercury thermometer 0°C~50 °C, sale division is 0.1 °C |
Piece |
1 |
|
5 |
Screw valve with outer screw thread (for sealing air chamber) |
Piece |
2 |
|
6 |
Screw cap with inner screw thread (for sealing gasoline chamber) |
Piece |
2 |
|
7 |
Small gasket (outer diameter φ14.5mm, inner diameter φ8mm) |
Piece |
4 |
|
8 |
Sealing ring for pressure meter (outer diameter φ18mm, inner diameter φ6mm) |
Piece |
4 |
|
9 |
Silicone stopper 8# |
Piece |
1 |
|
10 |
Stopping ring for thermometer (1#) |
Piece |
2 |
|
11 |
Fuse 10 A (Inner Dia.5×20) |
Piece |
2 |
|
12 |
Power supply wire |
Piece |
|
IV Packing &Delivery
|
Payment & Shipping Terms |
Supply Capacity |
||
|
Payment term : |
T/T or L/C |
Production capacity : |
500pcs/month |
|
MOQ: |
1 pc |
Packing : |
Wooden case |
|
Price |
negotiable |
Delivery way |
By Air |
|
Means of transport : |
FOB , CIF , CFR |
Delivery time : |
10 days |
