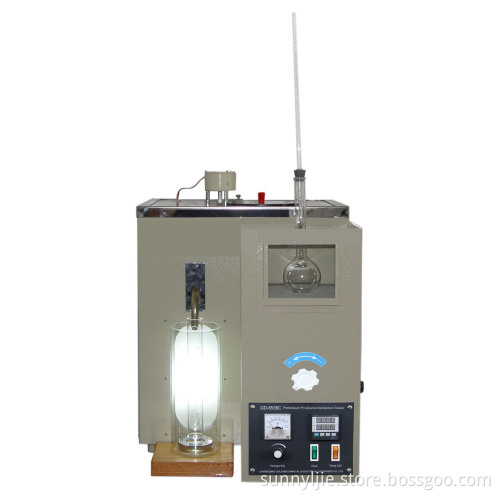

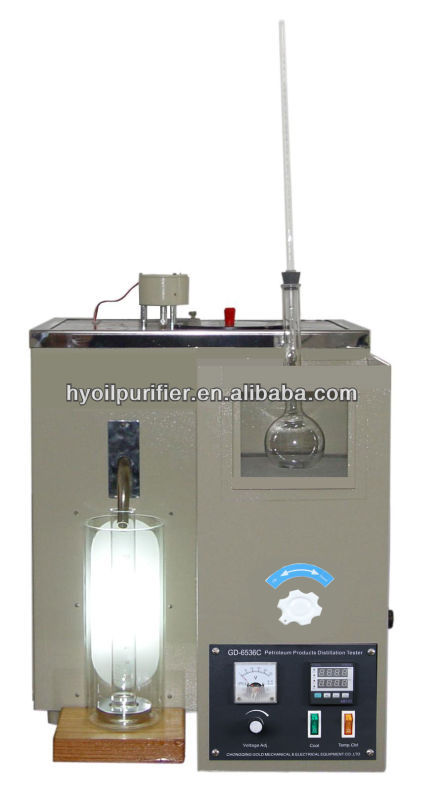

GD-6536C Petroleum Products Distillation Tester
Brief Introduction
The instrument is designed and made as per standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and similar petroleum products.
Main technical specifications and parameters
| Model | GD-6536C Petroleum Products Distillation Tester | |
| Power supply | AC 220 V±10%, 50 Hz | |
| Heating power | 1000 W | |
| Graduated flask cubage | 100 ml. Each scale division is 1 ml. | |
| Distillation flask | 125 ml, as per GB/T6536 | |
| Thermometer | from -2 to 300 °C and from -2 to 400 °C | |
| Moving plate | Made by SiC. Diameters of holes are φ32mm, 38mm, and 50mm | |
| Temperature controller | Range: 0 °Cto 60 °C | |
| Temperature accuracy: ±0.5°C | ||
| Temperature display mode: Digitally displayed by LED | ||
| Ambient temperature | ≤30°C | |
| Relative humidity | ≤85% | |
| Refrigerated compressor | New-type refrigeration compressor | |
| Total power consumption | ≤ 2500 W | |
| Dimension | 72*59*66cm | |
| Weight | 57kg | |
Characteristics
1.The electrics parts are controlled by controlling case.
2.The controlling case is made of
cold rolled steel. It has an observation window and a built-in
furnace. The electric part is at the lower section of the controlling case.
3.The furnace part is composed of SiC furnace base, heater of 1000W/220V,
and SiC plate. The position of furnace can be adjusted by rotating the up and
down knob on the controlling case, so that you can adjust the relative position
of distillation flask and the opening of condensation tube. The heating power
can be adjusted by rotating the voltage adjusting knob.
4.The refrigeration bath is made of
stainless steel. It contains heating device, refrigeration
device, temperature measuring device and stirring device. The stirring device is
driven by a motor
