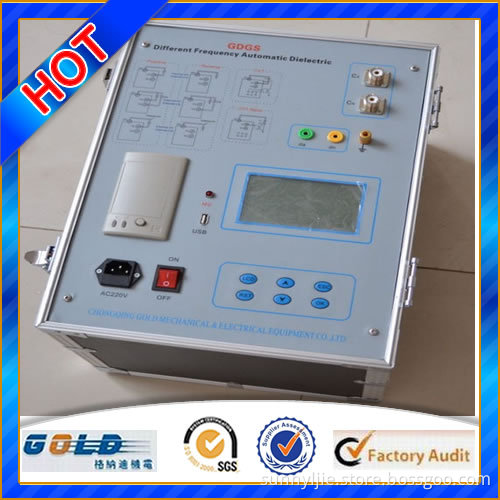

GDGS Automatic Dielectric Loss Tester
I Brief Introduction
GDGS Automatic Dielectric Loss Tester is applied to meaure the dielectric loss and capacitor value of insulating materials.
GDGS Automatic Dielectric Loss Tester is applied to measure the dielectric loss and capacitor value of insulation materials in high voltage power equipment. The non-power frequency voltage source is integrated in the tester to avoid power frequency interference. That make the tester has a good performance in measurement precision.
II Main Parameter
| Model | GDGS Automatic Dielectric Loss Tester | |
| Condition of Use | -5°C~40°C, RH<80% | |
| Power Source | AC 110V±10% Without Frequency Limit | |
|
High Voltage Output
Range |
1KV~10KV, every 1KV | |
| Precision | 5% | |
| Maximum Current | 140mA | |
| Capacity | 1000VA | |
|
Self-Excited Power Voltage Range |
AC 0V~30V | |
| Frequency | 45Hz /55Hz | |
| Maximum Current | 15A | |
| Output voltage | AC 0.5KV~10KV | |
| Testing voltage setting resolution | 0.5KV | |
| Maximum output capacity | 200mA | |
| Testing frequency | 45Hz/55Hz | |
| Test mode | fully automatic | |
| Power supply | AC220V± 50Hz/60Hz%10% | |
| Environment temperature | 0-50°C | |
| Humidity | ≤85%RH | |
| Weight | 40KG | |
III Packing&Delivery
|
Payment & Shipping Terms |
Supply Capacity |
||
|
Payment term : |
T/T or L/C |
Production capacity : |
500pcs/month |
|
MOQ: |
1 pc |
Packing : |
Wooden case |
|
Price |
negotiable |
Delivery way |
By Air |
|
Means of transport : |
FOB , CIF , CFR |
Delivery time : |
10 days |
IV Trade Show
