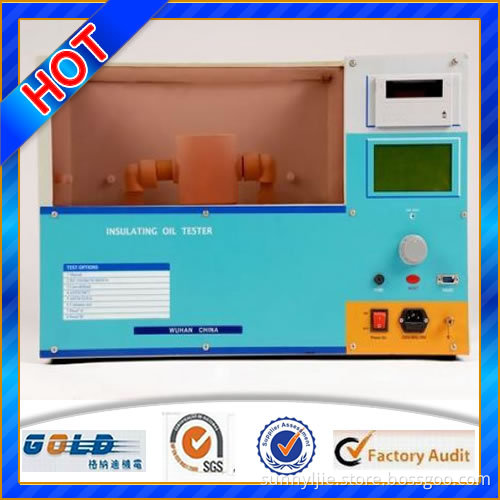

GDYJ-502 High Voltage Breakdown Tester
Introduction:
GDYJ-502 High voltage breakdown tester is a professional instrument for breakdown voltage test of insulating oil.
Test Standards:
1. IEC60156
2. IS6792
3. BS5874
4. ASTM D1816
5. ASTM D877
Characteristics:
1. Automatic determination.
2. Easy operation.
3. Stable performance and long life use.
4. Breakdown test of user-defined.
5. Proof test.
6. Fast test(5 minutes standard test).
7. Calibration interface.
8. PC connecting work and making word report.
9. Lcd display.
10. Built-in printer
Technical Parameters.
| No | Name | Parameters | Remark |
| 1 | Output Voltage | AC 0V~100KV | |
| 2 | Voltage Rising Rate | 0.5/2/3/5Kv/s±5% | |
| 3 | Test Times Setting | 9 times | |
| 4 | Stirring Time Setting | 0~999s | |
| 5 | Waiting Time Setting | 0~999s | |
| 6 | Test Error | 3%RDG+0.3%FS | |
| 7 | Storage Capacity | 100 group | |
| 8 | Power Supply | AC220V±10% 50Hz/60Hz | |
| 9 | Environment Temperature | 0~50°c | |
| 10 | Relative Humidity | ≤85%RH | |
| 11 | Dimension | 620×430×330mm | |
| 12 | Weight | 41kg |
