YJJ Insulating Oil Dielectric Strength Tester
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 15 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Supply Ability: | 300 |
| Certificate: | ISO |

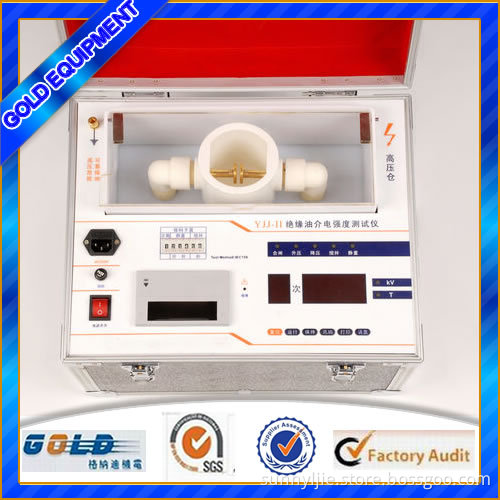

YJJ Insulating Oil Dielectric Strength Tester
1.The summary
YJJ series computer is a test device for testing the
dielectric strength of insulating oil , which is
produced according to the
National standard GB-86 (Determination Method For Dielectric
Strength of
Transformer Oil). The values are preset with the adjusting switch and then
the
device strictly works on the basis of the preset values. After doing one
test, the results can be
printed automatically.
2.Technical Data
a.
input voltage: AC220V
b. output voltage: AC0-80kv
c. voltage rising rate:
2kv/s±10%
d. test precision: 1.0 grade
e. test times: 1---9, stirring
time; 0---99seconds, stewing time:0---9 minutes 59seconds
f. temperature:
5----40°C, relative humidity: 90% RH
g. dimension: 520mm*400mm*400mm; net
weight:45kg.
|
Payment & Shipping Terms |
Supply Capacity |
||
|
Payment term : |
T/T or L/C |
Production capacity : |
500pcs/month |
|
MOQ: |
1 pc |
Packing : |
Wooden case |
|
Price |
negotiable |
Delivery way |
By Air |
|
Means of transport : |
FOB , CIF , CFR |
Delivery time : |
10 days |
