ZJB Series centrifugal lube oil purifier/insulating oil purifier
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 15 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Supply Ability: | 300 |
| Certificate: | ISO |

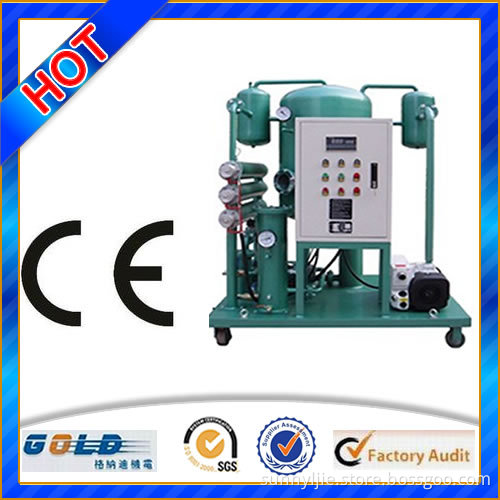

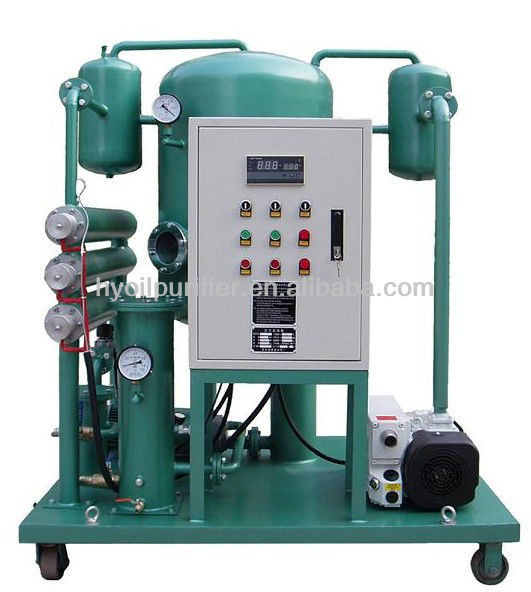

ZJB Series centrifugal lube oil purifier/insulating oil purifier
I Brief Introduction
Compact in structure, simple in operation, convenient in maintence and low cost, this filter is a new necessary product for the treatment of oil used in transformers, mutual inductors, switches and etc. of the electric industry and mining enterprises. It can filter out the water, gas and mechanical contaminants quickly and make the filtered oil up to or near the use standard of new oil. It can be used together with BJ series products for aged oil treatment, to reduce acid value and improve luster. Therefore, it is a perfect oil treatment assistant to customers
II Features of Product
1. Simple in operation,convenient in moving and high efficient in oil treatment.
2. As the new technology, vacuum-segregating (Patent No. ZL200420061085.6) employs particular spinning disk and stainless steel machine with dehydration and air pump and enlarges the area of segregating and coming to three-dimensional evaporation so that obtain the enough time to boil away. In this way purifier could achieve the best effect.
3. Using new type of heating equipment (Patent No. ZL02276238.8), it can reduce heating burthen and extend oil life.
4. Oil level control adopt photoelectric way which the main components is imported from Switzerland and have features of sensitive control, exactitude so much as feel the spume of oil. Spurting oil phenomena is never appeared.
5. With advantages of no leakage,low noise and long using life, this series of products adopt special input-oil pump which be airproofed by our factory.
6. In order to meet customer`s needs of choosing right filter, we have scientific design and exact filter assemblies which could exchange by ones abroad. Both cost and oil disposal effect are good.
III ZJB Series of different type
|
Item |
Parameter |
Type Unit |
ZJB0.42KY |
ZJB0.9KY |
ZJB1.8KY |
ZJB3KY |
ZJB4.8KY |
ZJB6KY |
ZJB9KY |
ZJB12KY |
ZJB18KY |
|
|||
|
Technical Parameter |
Flow Rate |
L/H |
420 |
900 |
1800 |
3000 |
4800 |
6000 |
9000 |
12000 |
18000 |
|
|||
|
Limit vacuity |
Pa |
≤20 |
|||||||||||||
|
Working Vacuity |
pa |
≤400 |
|||||||||||||
|
Working Pressure |
Mpa |
≤0.35 |
|||||||||||||
|
Temperature Range |
oC |
50-65 |
|||||||||||||
|
Power Supply |
|
50Hz 380V 3-Phase 4-Wire (or as requested) |
|||||||||||||
|
Total Power |
KW |
3.6+0.75 |
9+1.5 |
12+1.5 |
30+3 |
2x24+3.3 |
2x30+4 |
3x30+6 |
4x30+7 |
5x30+9 |
|
||||
|
Inlet/Outlet Diameter |
mm |
25/16 |
32/25 |
32/25 |
38/32 |
38/32 |
44/38 |
48/44 |
64/48 |
76/64 |
|
||||
|
Outer Size |
Length |
mm |
650 |
1100 |
1100 |
1500 |
1600 |
1650 |
1850 |
2100 |
2200 |
|
|||
|
Width |
mm |
500 |
850 |
900 |
1100 |
1200 |
1150 |
1250 |
1350 |
1400 |
|
||||
|
Height |
mm |
900 |
1400 |
1400 |
1700 |
2100 |
2050 |
2150 |
2200 |
2300 |
|
||||
|
Weight |
Kg |
60 |
120 |
200 |
500 |
600 |
800 |
1000 |
1500 |
2500 |
|
||||
|
Oil Treatment Index |
Breakdown Voltage |
KV |
60-65 |
||||||||||||
|
Water Content |
ppm |
5-10 |
|||||||||||||
|
Gas Content |
% |
≤0.25 |
|||||||||||||
|
Filtration Accuracy |
µm |
≤3 |
|||||||||||||
IV Packing &Delivery
V Related oil purifier :
|
Transfomer Oil Purifier |
|
Vacuum Lube Oil Purifier |
||
|
|
High-Vacuum Oil Purifier |
|
Vacuum Pumping Unit |
|
|
|
Dry Air Generator |
|
On-line Purifier |
|
|
|
Coalescing Dehyfration Oil Purifier |
|
On-line Steam-Turbine Oil Purifier |
|
|
|
Transfomer Oil Purifier |
|
Vacuum Turbine Oil Purifier |
|
|
|
Coal Oil Purifier |
|
Fire-Resistant Oil Purifier |
|
|
|
Plate-frame Pressure Oil Purifier |
|
Mobile Precision Oil Purifier |
|
VI Why Choose Us:
- Always Customer First.
- Professional Testing Equipment Supplier,with many years experience in this field.
- Exllent after-sale service and Competitive Price.
- English operating interface.
- Wtih In-house quality control.All the Equipments will be tested before leaving factory.
- All the Equipment has one year warranty.
VII Company Scan
