ZJC-R serise vacuum turbine oil purifier
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 15 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing |
|---|---|
| Supply Ability: | 300 |
| Certificate: | ISO |

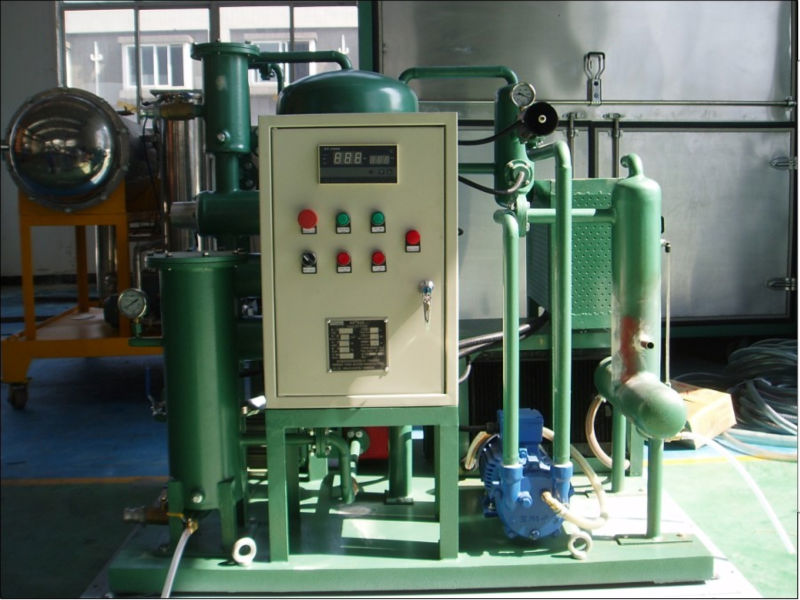

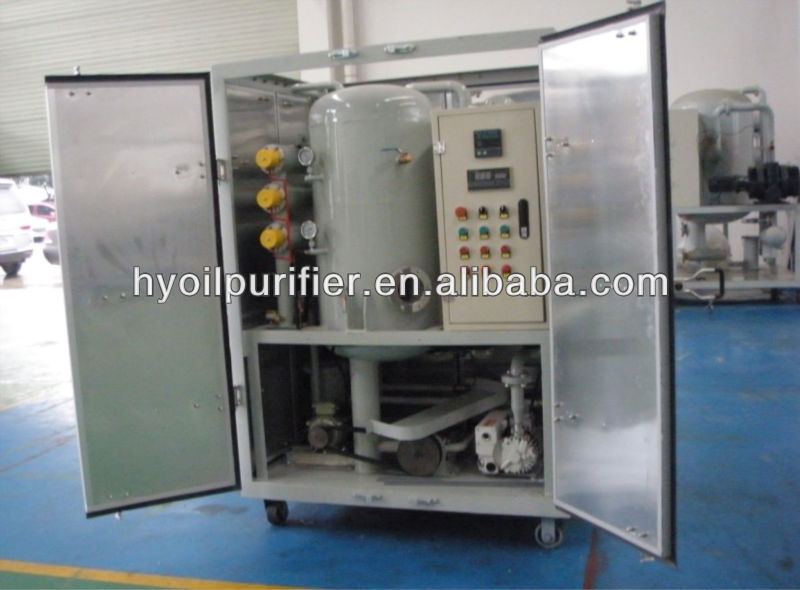

ZJC-R vacuum turbine oil purifier
I Brief Introduction
The Lubricating Oil Filtration machine is widely suitable for electric power, metallurgy, mine, machinery, chemical industry, transportation, manufacture and food industry etc. And it is particularly used to recover and regenerate all kinds of high precision lubricating oil, including unqualified hydraulic oil, refrigerator oil, pressure dissolving machine oil, gear oil, heat treatment oil anti-rubbing hydraulic oil and so on.
II
Features
1. Effectively remove the iron, flake, dust, impurities, water and
organic substance from the inferior oil. Moreover, it can eliminate organic and
inorganic acid to recover the performance of lubricant oil.
2. Strong demulsifying capability, which could easy to separate the
massive moisture contents, also easy to get rid of the little tiny water from
oil.
3. Adopt high precision and stainless steel FH rectangle filtration
system that import from Japan.
4. Utilize Tongrui's own invented technology of H, P, M macromolecule
material, which can reduce 1 or 2 color code of oil, and especially fit to high
viscosity lubricant oil, freezing machine oil, hydraulic oil and gear oil etc.
Superiority:
The lubricant oil has lower demulsifying value, less
water content and high precision impurities after treating so that it definitely
can be used in high precision and hydraulic device.
III Related ZJC-R vacuum turbine oil purifier
|
Item |
Parameter |
Type Unit |
ZJC0.6KY-R |
ZJC1.2KY-R |
ZJC1.8KY-R |
ZJC3KY-R |
ZJC6KY-R |
ZJC9KY-R |
ZJC12KY-R |
ZJC18KY-R |
|||
|
Technical Parameter |
Flow Rate |
L/min |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|||
|
Working Vacuity |
Mpa |
-0.07 ~ -0.101 |
|||||||||||
|
Working Pressure |
Mpa |
≤0.6 |
|||||||||||
|
Temperature Range |
oC |
45-65 |
|||||||||||
|
Power Supply |
|
50Hz 380V 3-Phase 4-Wire (or as requested) |
|||||||||||
|
Total Power |
KW |
6+1.5 |
9+1.5 |
12+1.5 |
30+3 |
2X30+4.4 |
3X30+6 |
4X30+7 |
5X30+9 |
||||
|
Inlet/Outlet Diameter |
mm |
20/20 |
20/20 |
25/20 |
32/25 |
38/32 |
64/48 |
76/64 |
89/76 |
||||
|
Size |
Length |
mm |
1300 |
1300 |
1300 |
1900 |
1900 |
2100 |
2200 |
2300 |
|||
|
Width |
mm |
1000 |
1050 |
1050 |
1400 |
1400 |
1500 |
1600 |
1700 |
||||
|
Height |
mm |
1250 |
1450 |
1450 |
1950 |
2100 |
2150 |
2250 |
2300 |
||||
|
Weight |
Kg |
350 |
420 |
510 |
950 |
1200 |
1600 |
2200 |
3500 |
||||
|
Oil Treatment Index |
Water Content |
ppm |
≤100 |
||||||||||
|
Filtering Accuracy |
µm |
≤5 |
|||||||||||
|
Cleanness |
NAS |
Grade 5~7 |
|||||||||||
