GD-2806H Automatic Softening Point Tester/Automatic Pitch Softening Point Tester

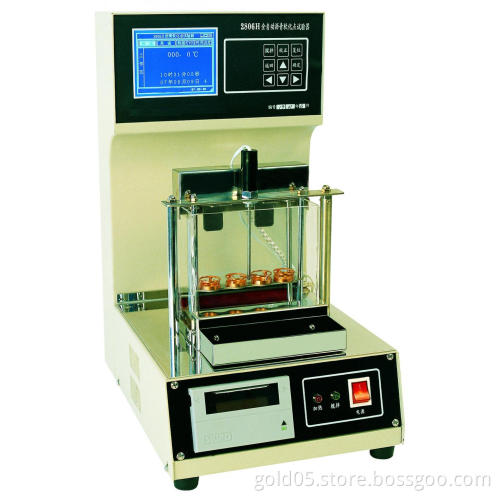

GD-2806H Automatic Softening Point Tester

Introduction:
The instrument is designed and made as per GB/T4507 Standard Test Method for Softening Point of Bitumen of national standard of People`s Republic of China, T0608 Softening Point Test (Ring-and-Ball Apparatus) in the industrial standard of People`s Republic of China JTG E20-2011 Standard Test Methods for Bitumen and Bituminous Mixtures for Highway Engineering and ASTM D36 Standard Test Method for Softening of Bitumen (Ring-and-Ball Apparatus). It is used to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and several of asphalts. It can be widely used for asphalt manufacturing companies, highway and bridge construction companies, relative colleges and universities, and scientific research institutes.

I. Features:
1. This instrument adopts micr℃omputer to control the test. Automatically stir, linear heating, automatically get the result and automatically print the test result.
2.The beaker adopts high temperature resisting glass material. The sizes of steel ring and ball can meet test standards.
3.  Small desktop structure. LCD display. Light touch panel. It can determine four samples at a time. Easy to use and results reliable.

II. Specifications:

Power supply	AC 220V (-5%~+10%), 50 Hz
Measurement range	32 ℃~160 ℃.     (1) Heating medium: distilled water (softening point under 80 ℃)     (2) Heating medium: glycerin (softening point over 80 ℃)
Temperature resolution	0.01 ℃
Cubage of beaker	1000 ml
Stirrer	the stirring speed can be adjusted continuously
Heating rate	it will be adjusted to 5.0±0.5 ℃/ min automatically after three minutes
Heating power	600 W
Test result	LCD screen shows results and printer to print.
Ambient temperature	The temperature shall be lower than 35 ℃ and keep stable. There shall not be any airflow
Relative humidity	≤85%
Maximum power consumption	700 W
Test samples	4 samples
