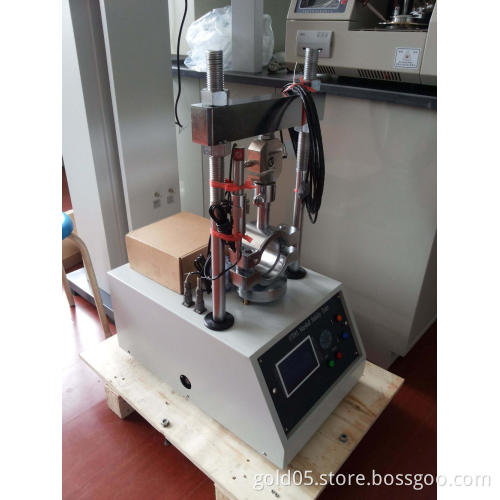

GD-0709A Marshal Stability compressive Tester/ marshall stability testing machine
1.GD-0709A Marshal Stability compressive Tester/ marshall stability testing machine is designed and made as per industrial standard T0709-2011 in JTG E20-2011 Standard Test Methods for Bitumen and Bituminous Mixtures for Highway Engineering.
2.GD-0709A Marshal Stability compressive Tester/ marshall stability testing machine is used to do the Marshall stability test for bituminous materials.
Main features
1.This instrument has functions of parameters setting, measurement calibration, automatic test control, automatic data collection and timer. The control unit will collect the stability and flow value for sample and judge the peak value automatically.
2.LCD display shows the stability, flow value, curves, result and time. The test effect is intuitive.
3. 100 groups of test data and test time can be stored in the instrument and callout whenever needed. All pr℃edures will be controlled automatically. 4. RS232 communication port. Realize the communication with upper computer. The data pr℃ess, store, print and display can be controlled by a PC. Also the test pr℃edures can be controlled by a PC.
4. This instrument also has functions for manual lifting, lowering and stopping. Convenient to use.
5. Note: Ф100mm sample clamp is in standard accessory list for this instrument. Users can also select clamps as blow:
1). Sample clamp: Ф150mm, one piece
2). Sample clamp: Ф100mm and Ф150mm, one for each.
Main specification
1.Maximum load :50kN
2.Measuring range :≤40kN
3.Measuring bias :≤±0.1kN
4.Overload protection: Automatically protect when load is over 39kN
5.vertical deformation(flow value): Range 0~20mm, bias ≤±0.05mm
6.Lifting rate for pressure machine :(50±5) mm/min
7.Communication port: RS232
8.Power supply :AC220V±10%,50Hz
9.Ambient temperature :0℃~60℃
10.Dimension: 600*380*840mm
11.Motor power: 550W
12.Net weight: 98kg
