GDJB-III Secondary Circuit Inspection By Relay Protection tester

USD5

1-1 Piece/Pieces
USD1

≥2 Piece/Pieces

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing,China
Productivity:	50piece/month
Supply Ability:	50piece
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Transportation:	Ocean,Land,Air

Product Description

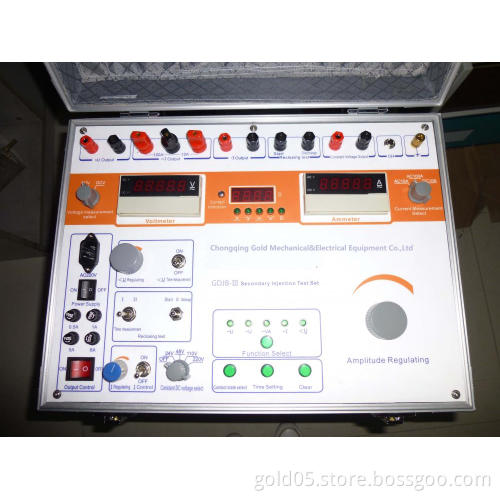

GDJB-III Single Phase Secondary Injection Test Set
Introduction:
1.It is applied to test protection replay based on voltage and current operation.
2.The main function of the tester include: calibration of voltage and current operation relays, secondary circuit inspection,trip value of circuit breaker test, switch on and off time measurement of circuit breaker and so on.
3.It`s a low cost, simple operation and reliable performance device for secondary circuit test.
Specifications:

DC voltage output 0~350V continuous adjustable, output capacity:960VA

AC voltage output 0~380V continuous adjustable, output capacity:400VA

DC current output 0~10A continuous adjustable, output capacity:80VA

AC current output 0~10A 0~100A,capacity:1000VA

Volt ampere feature test voltage 0~240V current 0~5A

AC short circuit voltage analog output

DC voltage selection output(it can be used as the operation power of static relay) OutputVoltage24V,48V,110V,220V,all the output current is 0.4A

Device precision 0.5 grade

Joint action time test 0~9999s

Resolution 1ms.

Power supply AC220V+/-10%, 50Hz/60Hz;

Environment temperature 0-50 centigrade;

Size 550mm*410mm*340mm

Weight 33kg
