SLQ Electric Lab Primary Current Injection Test Set

USD5

1-1 Piece/Pieces
USD1

≥2 Piece/Pieces

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing,China
Productivity:	50piece/month
Supply Ability:	50piece
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Transportation:	Ocean,Land,Air

Product Description

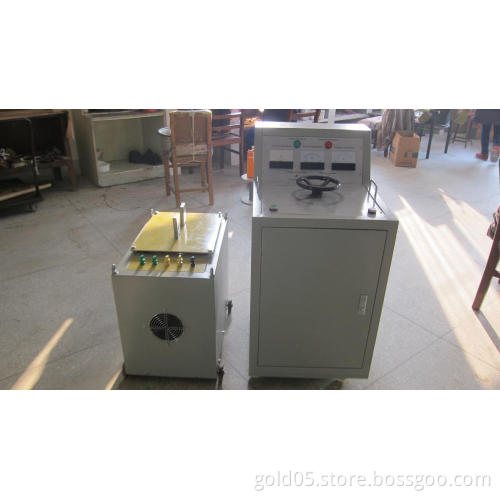

SLQ Series Primary Injection Tester

Introduction:
1. SLQ primary injection test set is a high current generator instrument .
2. It is applied in current transformer test , circuit breaker test and so on .

SLQ Models For Option

Type Rating capacity
(KVA) Rating input of converter Rating output of converter Impedance voltage% Idle current% Mode of structure

Booster Converter Current(A) Voltag(V) Current(KA) Voltage(V)

SLQ-3/500 3 3 13.6 220 0.5 6 ＞8 ＞6 Integral style

SLQ -5/1000 5 5 22.7 220 1 5 ＞8 ＞6 Integral/separated

SLQ -15/1000 15 15 68.2 220 1 15 ＞8 ＞6 Separated style

SLQ-10/2000 10 10 45.5 220 2 5 ＞8 ＞6 Separated style

SLQ -15/3000 15 15 68.2 220 3 5 ＞8 ＞6 Separated style

SLQ -20/4000 20 20 50 400 4 5 ＞8 ＞6 Separated style

SLQ -30/5000 30 30 75 400 5 6 ＞8 ＞6 Separated style

SLQ -28/7000 28 28 70 400 7 4 ＞8 ＞6 Separated style

SLQ -150/25kA 150 150 375 400 25 6 ＞8 ＞6 Separated style

Environment temperature : 0~50℃

Humidity ≤85%RH

The capacity and maximum current output could be customized according to the requirements of customer if you can not find the right one in this table.

Send your message to this supplier

* From:
* To:

Mr. andy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Primary Current Injection Tester , Primary Current Injection Test Set , Primary Injection Testing

Type	Rating capacity (KVA)		Rating input of converter		Rating output of converter		Impedance voltage%	Idle current%	Mode of structure
Type	Booster	Converter	Current(A)	Voltag(V)	Current(KA)	Voltage(V)	Impedance voltage%	Idle current%	Mode of structure
SLQ-3/500	3	3	13.6	220	0.5	6	＞8	＞6	Integral style
SLQ -5/1000	5	5	22.7	220	1	5	＞8	＞6	Integral/separated
SLQ -15/1000	15	15	68.2	220	1	15	＞8	＞6	Separated style
SLQ-10/2000	10	10	45.5	220	2	5	＞8	＞6	Separated style
SLQ -15/3000	15	15	68.2	220	3	5	＞8	＞6	Separated style
SLQ -20/4000	20	20	50	400	4	5	＞8	＞6	Separated style
SLQ -30/5000	30	30	75	400	5	6	＞8	＞6	Separated style
SLQ -28/7000	28	28	70	400	7	4	＞8	＞6	Separated style
SLQ -150/25kA	150	150	375	400	25	6	＞8	＞6	Separated style
Environment temperature : 0~50℃
Humidity		≤85%RH
The capacity and maximum current output could be customized according to the requirements of customer if you can not find the right one in this table.
