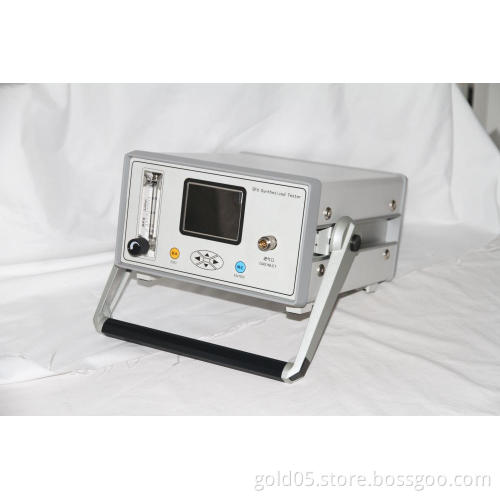

Multi-Function SF6 Decomposition Analyzer /Micro- Water Detector

SF6 synthesized tester integrates SF6 micro- water detector, SF6 purity tester, and SF6 decomposition analyzer as one. One time field measurement can complete the three detections, greatly save the gas in the device, which can save 2/3 of gas usage, while reduce the user's workload and improve work efficiency.

Features

1. Fast and save gas: after startup into the measuring state, the measuring time of dew point is about 5min; the measuring time of SF6 purity and SF6 decomposer is about 2min;

2. Self-lock joint: use the self-lock joint imported from German, safe and reliable, without gas leakage.

3. Data storage: high capacity, can store 200 groups test results at the most.

4. Curve function: Large-screen curve display the process of dewpoint measurement

5. Clearly display: the dew point, micro-water (ppm), SF6 purity, SO2, H2S, CO and HF content, and temperature, humidity, time and date, etc, are displayed by LCD.

6. Built-in power supply: built-in 4Ah chargeable lithium battery, filled one time, can work for 10 hours.

Main Specifications

Name	SF6 Gas Multifunction Analyzer/SF6 Purity Tester
Purity	Measuring range:0%~100%
	Accuracy:±0.5%
	Measuring time:< 2min
Dew point	Measuring range:-80~+20℃
	Accuracy:±0.5℃(-80℃~-60℃)
	Response time(+20℃)	63% need 5S, 90% need 45S (-60℃~+20℃)
		63% need 10S,90% need 240S (+20℃~-60℃)
H2S	Measuring range:0~200ppm
	The minimum detectable amount:≤0.1ppm
	Accuracy:±0.5%
	Stability:0~200ppm
	Repeatability:≤2%
SO2	Measuring range:0~200ppm
	The minimum detectable amount:≤0.1ppm
	Accuracy:±0.5%
	Stability:0~200ppm
	Repeatability:≤2%
HF(optional)	Measuring range:0~20ppm
	The minimum detectable amount:≤0.01ppm
	Accuracy:±0.5%
	Stability:0~20ppm
	Repeatability:≤2%
CO(optional)	Measuring range:0~1000ppm
	The minimum detectable amount:≤1ppm
	Accuracy:±0.5%
	Stability:0~1000ppm
	Repeatability:≤2%
Temperature	-40℃~+60℃
Humidity	0~100%RH
Power supply	AC 220V
	Built-in rechargeable battery
Battery performance	Charging time : 20 hours ; can work for 10 hours
Weight	5kg
Dimension	250×150×300mm3
Working temperature	-40℃~+80℃
