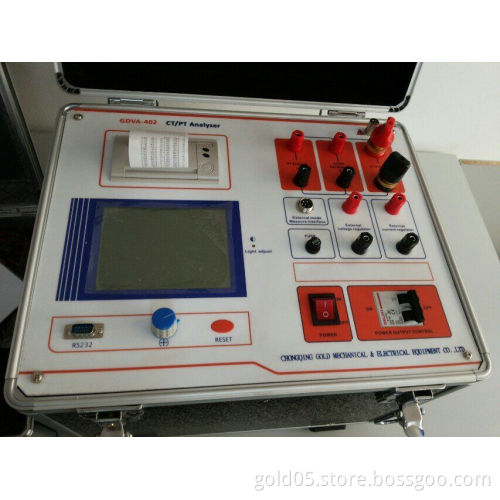

GDVA-402 Current Transformer Testing Equipment/CT PT Analyzer

USD5

1-1 Piece/Pieces
USD1

≥2 Piece/Pieces

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing,China
Productivity:	50piece/month
Supply Ability:	50piece
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Transportation:	Ocean,Land,Air

Product Description

Introduction:

GDVA-402 can finish: CT/PT volt-ampere characteristic curve test, CT/PT Polarity test,
CT/PT Transformation ratio test, automatically calculate error curve of any CT point.

Specifications:

Input voltage Output scope Measuring scope Measuring degree

Device main engine 220V 0~600V.0~20A 0~600V.0~20A 0.5%

380V 0~1000V.0~20A 0~1000V.0~20A 0.5%

220V 0~600A 0~600A Transformation ratio measuring precision 1%

External voltage raising machine 220V 0~1650V.0~3A 0~1650V.0~3A 0.5%

380V 0~2000V.0~3A 0~2000V.0~3A 0.5%

External current raising machine 220V 0~1000A 0~1000A Transformation ratio measuring precision 1%

External voltage adjustment machine

0~1000V.0~30A 0.5%

Device working power AC 220V/380V 50HZ External dimensions 420×330×320mm Weight 24kg

Send your message to this supplier

* From:
* To:

Mr. andy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

CT/PT Polarity Test , CT/PT Transformation Ratio Test , CT PT Analyzer

	Input voltage	Output scope		Measuring scope	Measuring degree
Device main engine	220V	0~600V.0~20A		0~600V.0~20A	0.5%
	380V	0~1000V.0~20A		0~1000V.0~20A	0.5%
	220V	0~600A		0~600A	Transformation ratio measuring precision 1%
External voltage raising machine	220V	0~1650V.0~3A		0~1650V.0~3A	0.5%
	380V	0~2000V.0~3A		0~2000V.0~3A	0.5%
External current raising machine	220V	0~1000A		0~1000A	Transformation ratio measuring precision 1%
External voltage adjustment machine				0~1000V.0~30A	0.5%
Device working power	AC 220V/380V 50HZ		External dimensions	420×330×320mm	Weight	24kg
