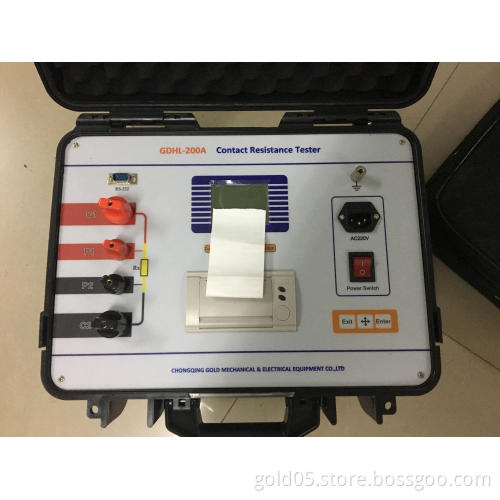

100A/200A Contact Loop Resistance Tester For HV Switch(GDHL-200A)

USD5

1-1 Piece/Pieces
USD1

≥2 Piece/Pieces

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing,China
Productivity:	50piece/month
Supply Ability:	50piece
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Transportation:	Ocean,Land,Air

Product Description

Introduction:

1. Contact resistance tester output DC 200A/100A current to test the contact resistance of circuit breaker or high current cable contacts.

2. It is designed according to IEC62271. The main application of the tester is measurement of circuit breaker contact resistance.

3. All the test results of the tester could be print by the micro-printer which is integrated in the tester.

4. Also all the test results saved in the tester could be upload to PC computer and then convert to MS WORD document.

Features:
Rapid test
Result print
Upload data to PC

Specification:

Measuring range 0-1999.9 μΩ Resolution:0.1 μΩ

Measuring current DC 100A/200A for different selection

Measuring precision 0.5 %RGD+0.05%FS

Display mode LCD

Data save no more than 100 groups

Communication port RS232

Rated power supply AC220V

Size 340 × 280 × 210mm

Environment temperature -10 ℃~+40 ℃ Relative humidity<80%
