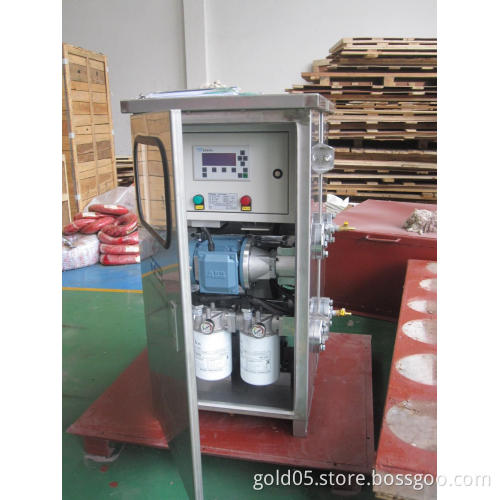

JZ-0.6BF Transformer OLTC On-load Tap Changer Oil Separator Oil Purifier

Introduction:

1) OLTC transformers regulate the system voltage while the transformer is under energy. They regulate the low and high voltage so they prevent the negative effects of voltage variation.

2) OLTC transformers do not require maintenance for long time by using online oil treatment machine .

3) JZ-0.6BF Series Online On-load Tap Changer Oil Purifier is mainly used to cycle oil from bypass of the transformer and high voltage switch on line. It can remove moisture and tiny particles to keep oil clean and water content, flash point, breakdown voltage, cleanness of the oil will not go worse.


Specifications:


Item	Name of Parameter		type / unit	JZ-0.6BF
Technical Parameter of the equipment	Nominal flow capacity		L/min	10
	Working Pressure		Mpa	0.5
	Working power		KW	(380V-50Hz)3-Phase 4-Wire (380V-50Hz)
	Total electric power		KW	0.75
	Diameter of inlet/Outlet hose		DN	25/25
	Size	Length	cm	53
		Width	cm	35
		Height	cm	100
	Weight		Kg	100
Oil treatment index	Filtering Accuracy		µm	1
	Cleanness		NAS level	≤6
