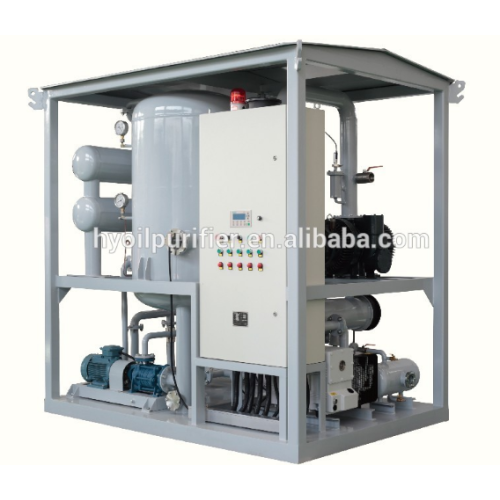

ZJA-Series High Vacuum Insulating Oil Transformer Oil purifier
  • ZJA-Series High Vacuum Insulating Oil Transformer Oil purifier
ZJA-Series High Vacuum Insulating Oil Transformer Oil purifier

ZJA-Series High Vacuum Insulating Oil Transformer Oil purifier

  • USD5
    1-1 Piece/Pieces
  • USD1
    ≥2 Piece/Pieces
Payment Type:
L/C, T/T, Western Union
Incoterm:
FOB, CFR, CIF
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
7 Days
Transportation:
Ocean, Land, Air
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Chongqing,China
Productivity: 50piece/month
Supply Ability: 50piece
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Transportation: Ocean,Land,Air
Product Description
Product Description


Introduction:

Made with advanced techniques and innovative designs, it is hailed as excellent in cost performance.
It is mainly used for purification of oil for high voltage and extra high voltage electric facilities, and mainly used for purify the oil used in ≤500kV electricity.
It is suitable for oil treatment, vacuum oil injection, and cyclic hot-oil drying in the installation and maintenance of big transformers.


Features:

1.Two separating house made by stainless steel. Oil flow by rotation in stereo evaporation to degas and dehydrate well.

2.Two separating house made by stainless steel. Oil flow by rotation in stereo evaporation to degas and dehydrate well.The combination of axial fan and condenser make vapor from vacuum pump and roots pump into water, it can prolong time to change vacuum oil while meet emission standard.

3.Multiple Filter Housings With Cartridge Style Filter Elements, big filtering area to hold more particles.

4.Control system: IEC standard with each wire marked. tri-unity control to avoid wrong operation as lack-phase, wrong phase and overload.

5.Oil level in vacuum tank is controlled by photoelectric switch, which is flexible and accurate. No oil-spraying.


Specifications:

Item Parameter Unit ZJA1.8KY ZJA3KY ZJA6KY ZJA9KY ZJA12KY ZJA18KY
Technical parameter Flow Rate L/H 1800 3000 6000 9000 12000 18000
Working Vacuity Pa ≤80
Working pressure Mpa ≤0.35
Temperature Range
45-65
Power Supply
50Hz    380V    3-Phase 4-Wire
Total Power KW 18+2.25 30+6 2X30+6.6 3X30+8.2 4X30+10 5X30+16.5
Inlet/Outlet Diameter mm 32 / 25 38 / 32 44 / 38 48 / 44 64 / 48 76 / 64
Size Length mm 1200 1500 1870 1930 2160 2250
Width mm 950 1150 1250 1400 1600 1750
Height mm 1600 2000 2200 2460 2650 2650
Weight Kg 650 900 1200 1600 2200 3000
Oil treatment index Breakdown Voltage KV 70-75
Water Content ppm 3~5
Gas Content % ≤0.2
Filtration accuracy µm ≤1~3
