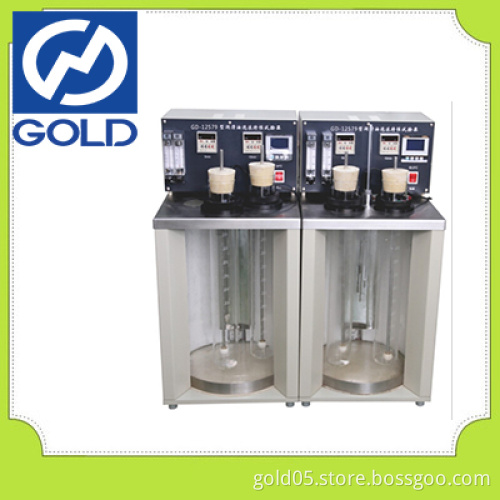

GD-12579 laboratory equipment foaming characteristics tester for lubricating oils

GD-12579 laboratory equipment foaming characteristics tester for lubricating oils

USD3000

≥2 Piece/Pieces

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	ChongQing,China
Productivity:	50piece/Month
Supply Ability:	50Piece/Month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Certificate:	GD/T 12579,ASTM D892,IP146
Transportation:	Ocean,Land,Air

Product Description

Summary
This instrument is designed and made as per standards GB/T12579 Determination of foaming characteristics of lubricating oils and ASTM D 892 Standard Test Method for Foaming Characteristics of Lubricating Oils. It is used to determine the foaming tendency and stability of lubricating oils.

I. Main technical features
1. The instrument adopts all-in-one structure. It includes three parts: low temperature test part and it`s control, high temperature test part and it`s control, a portable cooler for low temperature test part.
2. The temperature controller has parameters modifying function. If there is bias between showing temperature and testing temperature,it ca be corrected by this function.
3. The instrument equips an automatic timing alarm.

II. Main technical specifications
1. Power supply:   AC(220±10%)V, 50Hz
2. Constant temperature heating power: 650W
3. Auxiliary heating power: 1000W
4. Cooling power:   500W
5. Air flow rate:   (94±5)ml/min,adjustable
6. Temperature control range for high temperature bath:   (Room temp.~99.9)℃
7. Temperature control range for low temperature bath:   (5~99.9)℃
8. Temperature control accuracy:   ±0.5℃
9. Timer:   5min and 10min,accurate to second
10.Timing accuracy:     0.01%+0.05s(20℃)
11.Ambient temperature:   (-10~+40)℃
12.Relative humidity:     ≤85%
13.Maximum power consumption: 2700W
14.Dimension:   Main unit:800mm×500mm×765mm
                        Cooler:400mm×450mm×300mm
