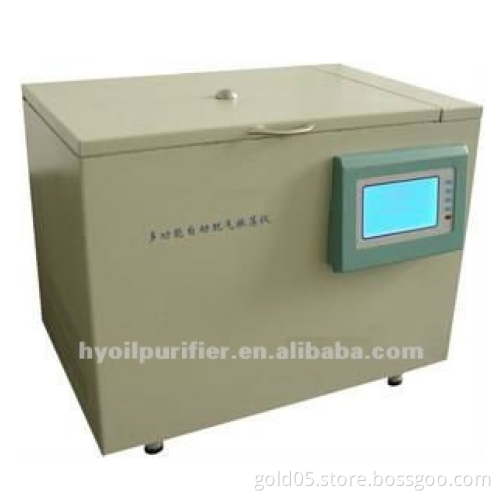

GD-17623 Automatic Multifunctional Degassing Oscillation Tester for Gas in Electric Insulating oil

USD5

1-1 Piece/Pieces
USD1

≥2 Piece/Pieces

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	ChongQing,China
Productivity:	50piece/Month
Supply Ability:	50Piece/Month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Transportation:	Ocean,Land,Air

Product Description

Introduction:

   This instrument is designed and made as per national standard GB/T 17623-1998 Determination of componental contents of gases dissolved in insulating oil by gas chromatography method. It is suitable to do degassing and oscillation for gas in electric insulating oil.

I. Main Technical Features:

»   This instrument adopts new technologies of LCD graphic scrolling show, man-machine dialog interface and menu prompt type input. Easy to observe.

»   This instrument has features of clear interface, easy operation, high accuracy, low noise and small in size.It achieves automation of determination.

II. Main Technical Specifications:

1
Display

LCD

2
Temperature range

Ambient~99.9℃

3
Working environment

(10~40)℃, relative humidity ≤85%

4
Temperature control accuracy

(Ambient~50)℃±0.2℃; (50~80)℃±0.3℃

5
Oscillation frequency

(275±3) times/min

6
Oscillation amplitude

35mm

7
Time control

Oscillation for 20min,stand still for 10min and temperature being constant at 50℃

Oscillation for 5min,stand still and give alarm to keep constant temperature at 70℃

Any time set for oscillation and stand still within (0~99) min

Any temperature set within (0~99)℃

8
Samples

100ml, 8 pieces

9
Maximum power consumption

1000 VA

10
Power supply

AC(220±10%)V, 50Hz±2.5Hz

11
Dimension

500mm×360mm×420mm

1	Display	LCD
2	Temperature range	Ambient~99.9℃
3	Working environment	(10~40)℃, relative humidity ≤85%
4	Temperature control accuracy	(Ambient~50)℃±0.2℃; (50~80)℃±0.3℃
5	Oscillation frequency	(275±3) times/min
6	Oscillation amplitude	35mm
7	Time control	Oscillation for 20min,stand still for 10min and temperature being constant at 50℃
Oscillation for 5min,stand still and give alarm to keep constant temperature at 70℃
Any time set for oscillation and stand still within (0~99) min
Any temperature set within (0~99)℃
8	Samples	100ml, 8 pieces
9	Maximum power consumption	1000 VA
10	Power supply	AC(220±10%)V, 50Hz±2.5Hz
11	Dimension	500mm×360mm×420mm
