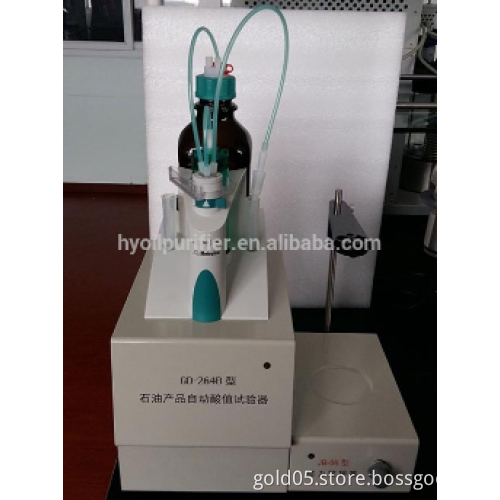

GD-264B High Precise Automatic Petroleum Oil Acid Number Tester

GD-264B Automatic Total Acid Number Tester / Acid Value Tester by ASTM D664

I. Product Introduction

• The Acid Number Tester uses potentiometric titration method.
• Recording the titration of the electrode potential and the titration volume, find out the equivalence point and corresponding titrant volume, and thus obtained the sample pH value.
• This instrument can accurately detect the acid value of transformer oil, turbine oil, anti oil, diesel, gasoline and other petroleum products.
• Acid Number Tester is Widely used in chemical industry, electric power, oil and other industries, it`s the ideal products to current meter acid number of petroleum products.
• National Standard:GB/T264, GB7599-87, GB/T7304-2000, GB/T 18609-2001
• International Standard : ASTM D664-2011 Standard Test Method for Acid Number of Petroleum Products by Potentiometric Titration

II. Product Features

1. Special operation software provides an English windows interface. The man-machine dialog makes it easy to operate.
2. High resistance input makes the signal stable and reliable.
3. Displaying the curve and result in real time.
4. The test result can be saved as a Word file.
5. The process data can be saved as an Excel file.
6. The curve, result and data can be printed.
7. Automatic liquid compensation. Automatic value set and liquid adding.

III.  Technical Parameters

• Acid number measuring range:  ≥0.05 mgKOH/g
• Potentiometric measurement: (0~1800.0)mV
• Capacity of burette: 10mL
• Minimum titration volume:  0.02mL
• Precision of burette:  ±0.1%F•S
• Precision of instrument: Meet relevant standard test methods
• Power supply:  AC(220±11)V ,50±1Hz
• Ambient temperature:  5℃~35℃
• Relative humidit:   ≤80%
• Dimension: 350x280x78mm(PC is not included)
• Net weight: 14Kg(PC is not included)
