GD-0165 Best-selling Vacuum Distillation Unit at Reduced Pressure

USD5

1-1 Piece/Pieces
USD1

≥2 Piece/Pieces

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	ChongQing,China
Productivity:	50piece/Month
Supply Ability:	50Piece/Month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Transportation:	Ocean,Land,Air

Product Description

I. Introduction

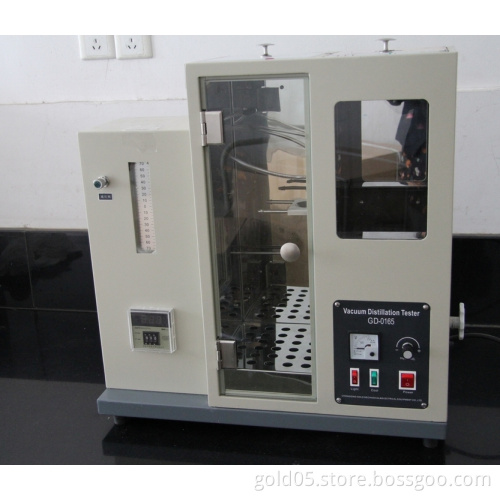

GD-0165 ASTM D1160 Vacuum Distillation Analyzer is designed and made as per the industrial standard of People's Republic of China SH/T0165-92 Test Method for Distillation of High Boiling Point of Petroleum Products at Reduced Pressure.

GD-0165 ASTM D1160 Vacuum Distillation Analyzer is suitable to determine the distillation characteristics of high boiling point petroleum products, such as wax oils, lubricating oils, etc.

II. Main Technical Features

GD-0165 ASTM D1160 Vacuum Distillation Analyzer is desktop structure. It is composed of distillation test part and vacuum process part. It can meet requirements of SH/T 0165

The power of the heating furnace can be adjusted continuously. It equips a cooling device to make the heating furnace cooled down rapidly after determination. It is convenient for next test.

The vacuum pump has good effect. The max residual pressure is 2mmHg.

Ⅲ. Main Technical Specification

1
Power supply

AC 220 V±10%, 50 Hz

2
Heating power

Heater for distillation flask: 1000 W

Heater for receiving flask: 350 W

3
Heating power for distillation flask

0W to 1000 W, adjustable

4
Temperature range for air bath of receiving flask

room temperature to 100 ℃,adjustable.

5
Temperature sensor of air bath

Pt100,RTD

6
Temperature control mode for air bath

Digital temperature controller

7
Temperature controlling precision

Set temp. ±1 ℃

8
Valume of buffer vessel

1000 ml

9
Max. Residual pressure of vacuum pump

2 mmHg

10
Illumination light in the air bath of receiving flask

Energy saving lamp

11
Working condition

Ambient temperature: 5℃ to 35 ℃ Relative humidity: ≤85%

IV. Packaging List of GD-0165 ASTM D1160 Vacuum Distillation Analyzer

No.
Name Unit Quantity Remark

1 Main unit Set 1

2 Vacuum pump (2 L) Set 1 ZXZ-2

3 Distillation flask Piece 1

4 Receiving flask Piece 1

5 Thermometer (0 to 360 °C) Piece 1

6 Silica gel stopper (4#) Piece 1

7 Fuse of 10 A (Inner Dia.5×20) Piece 2

8 6 (Outer diameter)×4 (Inner diameter) PU tube Meter 2 Connect the pump to the instrument

9 6 (Outer diameter)×4 (Inner diameter) PU tube Meter 0.4 Connect U type tube to the instrument

10 Glass U type tube Piece 1

11 Syringe Piece 1 To fill mercury into the U type tube

1	Power supply	AC 220 V±10%, 50 Hz
2	Heating power	Heater for distillation flask: 1000 W
Heater for receiving flask: 350 W
3	Heating power for distillation flask	0W to 1000 W, adjustable
4	Temperature range for air bath of receiving flask	room temperature to 100 ℃,adjustable.
5	Temperature sensor of air bath	Pt100,RTD
6	Temperature control mode for air bath	Digital temperature controller
7	Temperature controlling precision	Set temp. ±1 ℃
8	Valume of buffer vessel	1000 ml
9	Max. Residual pressure of vacuum pump	2 mmHg
10	Illumination light in the air bath of receiving flask	Energy saving lamp
11	Working condition	Ambient temperature: 5℃ to 35 ℃ Relative humidity: ≤85%

No.	Name	Unit	Quantity	Remark
1	Main unit	Set	1
2	Vacuum pump (2 L)	Set	1	ZXZ-2
3	Distillation flask	Piece	1
4	Receiving flask	Piece	1
5	Thermometer (0 to 360 °C)	Piece	1
6	Silica gel stopper (4#)	Piece	1
7	Fuse of 10 A (Inner Dia.5×20)	Piece	2
8	6 (Outer diameter)×4 (Inner diameter) PU tube	Meter	2	Connect the pump to the instrument
9	6 (Outer diameter)×4 (Inner diameter) PU tube	Meter	0.4	Connect U type tube to the instrument
10	Glass U type tube	Piece	1
11	Syringe	Piece	1	To fill mercury into the U type tube
