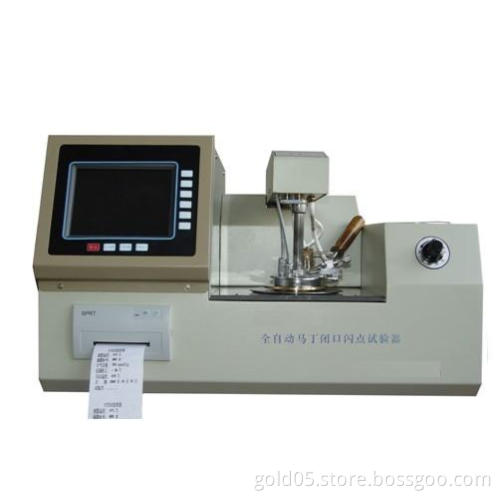

GD-261D Fully-automatic Pensky-Martens Closed Cup Flash Point Analyzer

USD5

1-1 Piece/Pieces
USD1

≥2 Piece/Pieces

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	ChongQing,China
Productivity:	50piece/Month
Supply Ability:	50Piece/Month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Transportation:	Ocean,Land,Air

Product Description

Introduction:

» GD-261D Pensky-Martens Flash Point Apparatus is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens closed cup method and ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester.

» GD-261D Pensky-Martens Flash Point Apparatus is used to make determination of the closed cup flash point of the petroleum products.

Main Technical Features:

♣ It adopts LCD screen to display. Full English man-machine dialog interface. It can preset the parameters of expected flash point,sample mark number, atmospheric pressure, test date,etc.It has menu to prompt and input function of guide type.

♣  It adopts simulation tracking display the function curve of temperature rising and test time.It has prompt functions of English mis-operation,test date and test time.

♣  It is equipped with standard RS-323,485 computer port.The lower computer can save 100 groups of historical data. The test data can be saved for a long time, transmitted and modified if the instrument being connected with computer.

♣ It can correct the influence of atmospheric pressure and calculate the correction automatically.

♣ Differential detection.Automatically correct the systematic deviation.

♣ Automatically open the lid,ignite,detect and print test data.The test arm lifting up and down automatically.

♣ It adopts electric ignition to fire light the gas flame.It will light only need to press the button.

♣ Humanized design,beautiful and safe. Easy to operate.

Main Technical Specifications:

1

Power supply

AC(220±10%)V,50Hz

2 Temperature measurement Range: room temperature~300°C

Repeatability:≤3°C

Reproducibility:≤6°C

Accuracy:0.1°C

3 Heating rate Procedure A:(5~6)°C/min

Procedure B:(1~1.6)°C/min

Automatic control and manually adjustable.

4    Stirring rate (1) Procedure A: (90~120)RPM

(2) Procedure B: (250±10)RPM

Automatic control and manually adjustable.

5 Igniting mode Electric ignition. Gas flame diameter:3.2mm~4.8mm

6 Working condition ambient temperature:(10~40)°C

relative humidity:≤80%

7 Maximum power consumption 500W

8 Dimension 520mm×360mm×310mm

Send your message to this supplier

* From:
* To:

Mr. andy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Automatic Flash Point Tester , Closed Cup Flash Point Tester , Flash Point Tester for Petroleum

1	Power supply	AC(220±10%)V,50Hz
2	Temperature measurement	Range: room temperature~300°C
		Repeatability:≤3°C
		Reproducibility:≤6°C
		Accuracy:0.1°C
3	Heating rate	Procedure A:(5~6)°C/min
		Procedure B:(1~1.6)°C/min
		Automatic control and manually adjustable.
4	Stirring rate	(1) Procedure A: (90~120)RPM
		(2) Procedure B: (250±10)RPM
		Automatic control and manually adjustable.
5	Igniting mode	Electric ignition. Gas flame diameter:3.2mm~4.8mm
6	Working condition	ambient temperature:(10~40)°C
6	Working condition	relative humidity:≤80%
7	Maximum power consumption	500W
8	Dimension	520mm×360mm×310mm
