Basic Info

Place of Origin:	ChongQing,China
Productivity:	50piece/Month
Supply Ability:	50Piece/Month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Transportation:	Ocean,Land,Air

Product Description

Introduction:

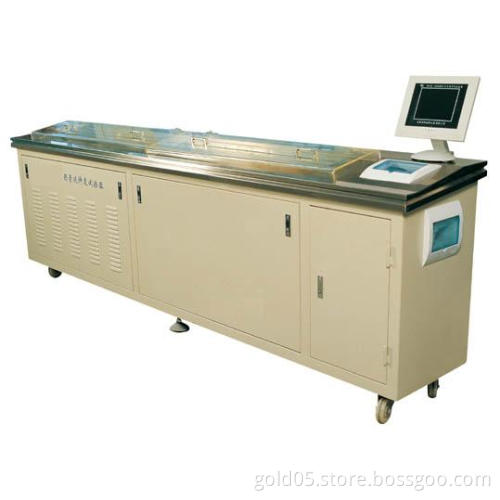

» GD-4508G Automatic Digital Bitumen Ductility Tester is designed and made as per national standard GB/T 4508-2010 Standard Test Method for Ductility of Bitumen, T0602-2011 Asphalt Ductility Test in JTG E20-2011 in the Industrial Standard of People`s Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D113 Standard Test Method for Ductility of Bituminous Materials.

» GD-4508G Automatic Digital Bitumen Ductility Tester is suitable to determine the distance to which it will elongate before breaking when two ends of a briquet specimen of the material are pulled apart at a specified speed and at a specified temperature.

Main Technical Features:

» GD-4508G Automatic Digital Bitumen Ductility Tester adopts humanized design philosophy. There is no leading screw, lead rail or other components in the test trough. It adopts innovative transmission design. The stretching is stable and synchronous. There is no tremble and the speed is uniform. The sample can be easily installed in and the maximum measurement distance can reach 1.5m.

» GD-4508G Automatic Digital Bitumen Ductility Tester can determine ductilities of three samples and tensile forces of two sample by one analysis.

» GD-4508G Automatic Digital Bitumen Ductility Tester adopts PC control technology. The temperature control accuracy is high. It has the function of automatic specimen positioning. The ductility determination can be operated remotely. Equipped with a communication port, it achieves the communication with PC conveniently.

» GD-4508G Automatic Digital Bitumen Ductility Tester adopts large LCD to show the temperature, ductility, tensile force clearly.

» GD-4508G Automatic Digital Bitumen Ductility Tester equips a needle microprinter to printer out the test results automatically(Ductility, average value, maximum tensile force and the changing curves).

» The specimen can return and positioning automatically after the determination.

Main Technical Specification:

1
Power supply

AC(220±10%)V, 50Hz

2
Measurement distance

1.5m(±10mm)

3
Heating power

3200W

4
Temperature control

Range:(5~35)℃, accuracy: ±0.1℃

5
Tensile speed

(10~50)mm/min,stepless adjustment. accuracy:±1mm

6
Tensile test

Range:(0~300)N, accuracy:±1N, resolution: 0.1N

7
Data output

Communication port RS232

Printed by microprinter

8
Refrigeration

Compressor 1.0P, input power is 800W

9
Ambient temperature

(-10~+35)℃

10
Relative humidity

≤85%

11
Maximum power consumption

4100W

12
Dimension

2365mm×530mm×1000mm

Related Products:

GD-4508C Automatic Digital Bitumen Ductility Tester

GD-4508J Automatic Digital Bitumen Ductility Tester

GD-4508H Automatic Digital Bitumen Ductility Tester

1	Power supply	AC(220±10%)V, 50Hz
2	Measurement distance	1.5m(±10mm)
3	Heating power	3200W
4	Temperature control	Range:(5~35)℃, accuracy: ±0.1℃
5	Tensile speed	(10~50)mm/min,stepless adjustment. accuracy:±1mm
6	Tensile test	Range:(0~300)N, accuracy:±1N, resolution: 0.1N
7	Data output	Communication port RS232
Printed by microprinter
8	Refrigeration	Compressor 1.0P, input power is 800W
9	Ambient temperature	(-10~+35)℃
10	Relative humidity	≤85%
11	Maximum power consumption	4100W
12	Dimension	2365mm×530mm×1000mm
