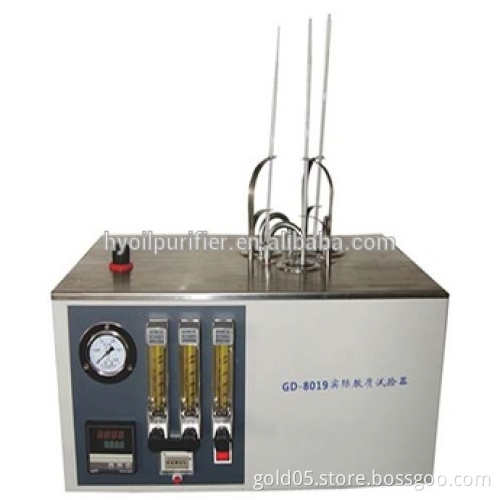

GD-8019 Fuel Oil Existent Gum Tester by ASTM D381

USD5

1-1 Piece/Pieces
USD1

≥2 Piece/Pieces

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	ChongQing,China
Productivity:	50piece/Month
Supply Ability:	50Piece/Month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Transportation:	Ocean,Land,Air

Product Description

Introduction:

GD-8019 Steam-jet Evaporation Existent Gum Evaporating Bath is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels by jet evaporation and ASTM D381Standard test method for gum content in fuels by jet evaporation.

GD-8019 Steam-jet Evaporation Existent Gum Evaporating Bath is suitable to determine the existent gum content of Aviation Gasolineand Motor Gasoline (Not suitable to determine the existent gum content of aviation turbine fuel)

Features:

GD-8019 Steam-jet Evaporation Existent Gum Evaporating Bath equips a specially designed heating bath.The gas circuit is designed reasonably and the effect of evaporation is good.

The material of working bench is stainless steel. It has 3 sample holes. Each jet flow can be adjusted and controlled by an independent flowmeter. It can do 3 determinations at the same time.

GD-8019 Steam-jet Evaporation Existent Gum Evaporating Bath is desktop structure. Simple design and easy to operate. It equips an air compressor to make it meet requirements of standard.

Specifications:

1 Power supply AC(220±10%)V,50Hz,2500W

2 Dimension of evaporation bath φ260mm×130mm

3 Sample positions 3 positions

4 Dimension of sample positions φ51mm×70mm

5 Working temperature (160~165)°C

6 Temperature control Automatic

7 Temperature display Digital display

8 Flow display Displayed by a ball float type flowmeter

9 Working pressure of air reducing valve 0.035MPa

10 Air source External connection,over (1000±150)mL/s

11 Dimension 590mm×480mm×340mm(Thermometer holder is not included)

Send your message to this supplier

* From:
* To:

Mr. andy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Existent Gum Tester , Gasoline Gum Tester , Gasoline Existent Gum Tester

1	Power supply	AC(220±10%)V,50Hz,2500W
2	Dimension of evaporation bath	φ260mm×130mm
3	Sample positions	3 positions
4	Dimension of sample positions	φ51mm×70mm
5	Working temperature	(160~165)°C
6	Temperature control	Automatic
7	Temperature display	Digital display
8	Flow display	Displayed by a ball float type flowmeter
9	Working pressure of air reducing valve	0.035MPa
10	Air source	External connection,over (1000±150)mL/s
11	Dimension	590mm×480mm×340mm(Thermometer holder is not included)
