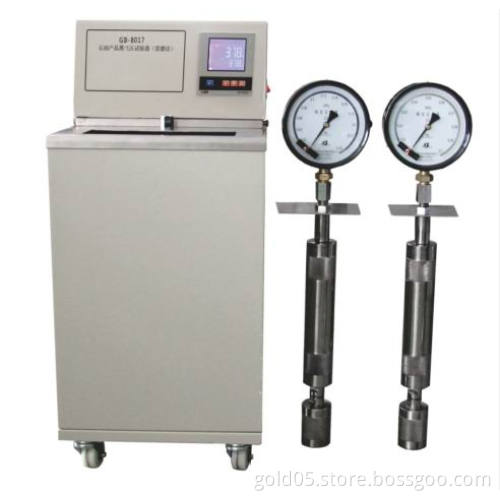

GD-8017 Crude Oil Reid Vapor Pressure RVP Tester by ASTM D323

GD-8017 petroleum products Vapor pressure tester for vapor pressure of gasoline

1.GD-8017 petroleum products Vapor pressure tester for vapor pressure of gasoline is made and designed as per national standard of People`s Republic of China GB/T 8017 Petroleum Products- Determination of vapor pressure- Reid method.
2.GD-8017 petroleum products Vapor pressure tester for vapor pressure of gasoline is used to test make determination for vapor pressure of gasoline, volatile crude oil and other volatile petroleum products

Main features

1. Floor type structure. Stainless steel working table. It is good looking and easy to operate. Accessories are complete.

2. Digital temperature controller. The temperature in water bath is uniform. Temperature control accuracy is high. It can meet the requirements of test.

3. Two precise pressure meters to detect the gas pressure inside the bomb. 4. Two sets of vapor pressure bombs. It can do synchronous tests.

Main specifications

1 .Power supply:AC(220±10%)V, 50Hz
2 .Heating power of bath:1600W
3 .Temperatrue control range of bath:(Room temp.~90)℃
4 .Temperature control accuracy of bath:±0.1℃
5 .Accuracy of pressure meter:±0.4%
6 .Ambient temperature:(-10~35)℃
7 .Relative humidity:≤85%
8 .Maximum power consumption:1700W
9 .Dimension:350mm×340mm×750mm
