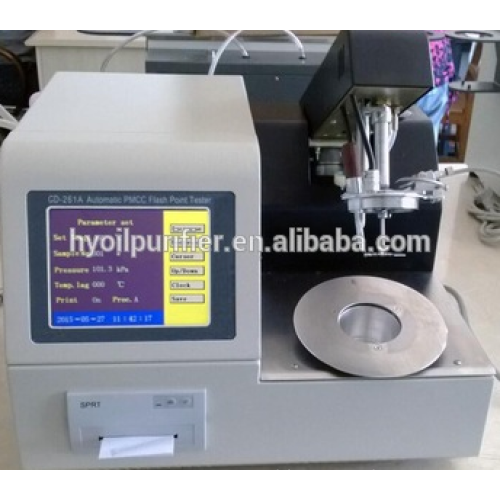

GD-261A Pensky-Martens Method Automatic Closed-Cup flash point tester

Introduction:
This instrument is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens closed cup method and ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products.

Features:
1.         Light-touch colored LCD. English man-machine dialog interface. All parameters including preset flash temperature, sample number, atmospheric pressure and date can be set by prompt menu.
2.         Simulation tracking of temperature rising curve with time. Prompt function. Test date and time can be modified.
3.         120 groups of data can be saved.
4.         Automatically calculate the corrected flash point when the pressure differs from standard atmospheric pressure.
5.         Differential detection. Automatic correct the system bias.
6.         Automatically open cover, ignite, detect and print result.
7.         Safe and easy to operate.

Specifications:

Power supply	AC(220±10%)V,  50Hz
Flash point determination	Range: Ambient to 300℃ Meet requirement of GB/T 261-2008 Meet requirement of GB/T 261-2008 Resulotion: 0.1℃
Heating rate	Procedure A: (5~6)℃/min Procedure B:(1~1.5)℃/min Automatic control and manually adjustable
Stirring rate	Procedure A: (90~120)RPM Procedure B: (250±10)RPM Automatic control and manually adjustable
Igniting mode	Igniting source: gas (or other civilian fuels) Electric ignition. Gas flame diameter:3.2mm~4.8mm
Ambient temperature	≤ 40℃
Relative humidity	≤ 80%
Maximum power consumption	500W
Overall dimension	410*360*310mm
