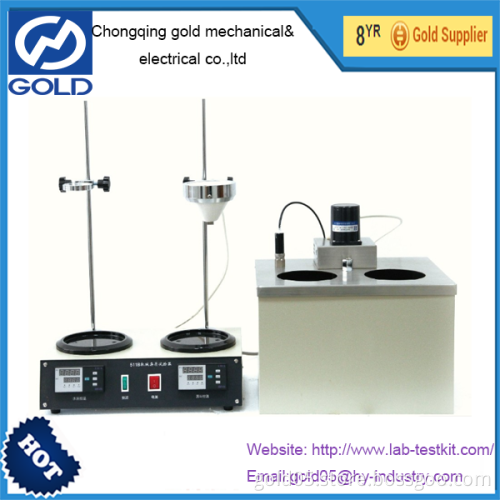

GD-511B Mechanical Impurity Tester

Introduction:

The instrument is designed and made as per national standard of People`s Republic of China GB/T511 Standard Test Method for Mechanical Impurity of Petroleum Products and Additive (Weight Method). It is used to determine mechanical impurity in hydrocarbons, heavy oils, lubricating oils, and additives.


Features:

1. This instrument is composed of glass vessels, water bath, funnel, suction pump, motor and digital temperature controller. It has features such as small size, light weight, rapid heating rate and easy installation.
2. The temperature control funnel is small and light. It can save operation time and solvent.
3. Desktop structure. Simple design. Easy to use.


Specifications:

Power supply	AC 220V±10%, 50 Hz
Heating power for water bath	1000 W
Temperature control range for water bath	Room temperature~90 ℃, adjustable
Bath temperature display	Digitally displayed by LED
Temperature control accuracy for water bath	±1 ℃
Temperature control range for funnel	Room temperature~90 ℃, adjustable
Funnel temperature display	Digitally displayed by LED
Temperature control accuracy for funnel	±2 ℃
Size	Control case	390*260*590 mm
	Water bath	390*290*370 mm
Ambient temperature	≤35 ℃
Relative humidity	≤85%
Maximum power consumption	1200 W
