ASTM D482 Oil Ash Content Instrument with Box-type heating furnace

Introduction:
The instrument is designed and made as per national standard of People`s Republic of China GB/T508 Standard Test Method for Ash Content of Petroleum Products. It is suitable to determine ash content in the petroleum products as per GB/T508. It could not be used to determine ash content in the petroleum products containing ash-forming additives (including additives containing certain phosphorus compounds), lubricating oils containing lead, and used engine crankcase oils.
The method summary of ash content test: Take ashless filter paper as ignition core. Ignite the sample in the crucible to make it burning to ash and carbon residue. Heat the carbon residue at 775℃ in the high temperature furnace to make it convert to ash. Then cool down and weigh the mass.

Features:

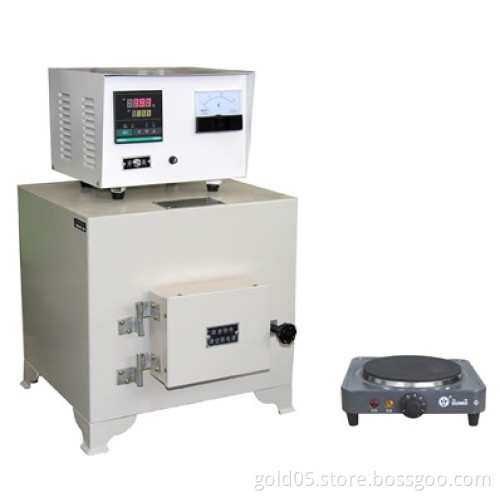

1. The instrument is composed of a box-type heating furnace, a temperature control stand and an electric heating plate. It is small size and needs less land.
2. The box-type furnace adopts all-in-one structure. Special fire-resistant material and heating components. The heating time is short and it has a long lifetime.
3. An adjustable LED temperature controller is equipped in the control stand. The overshoot is small and temperature control is stable.
4. The size of heating plate is Φ85㎜. Small size and good durability.

Specifications:
Box-type heating furnace

Power supply	AC220V±10%, 50 Hz
Rated power	2.5 kW
Rated temperature	1000℃
Temperature rising time for empty furnace	≤50 min
Power consumption for empty furnace	≤800W
Heat savings	≤5kW.h
Furnace temperature uniformity	≤15℃
Therm℃ouple	WRN-010
Size of furnace chamber	200mm*120mm*80mm
Dimension	575mm*3850mm*480mm


Temperature control stand

Rated controllable power	5000W
Power supply	AC(220±10%)V, 50Hz
Maximum control temperature	1200℃
Temperature controller	DTW2001
Therm℃ouple	WRN-010
Dimension	500mm*300mm*235mm


Electric heating plate

Rated power	1500W
Power supply	AC (220±10%) V, 50Hz
Rated temperature	400℃
Heating power	(1~6)grades, continuously adjustable
Diameter of heating plate	Φ85mm
Dimension	280mm*250mm*90mm
