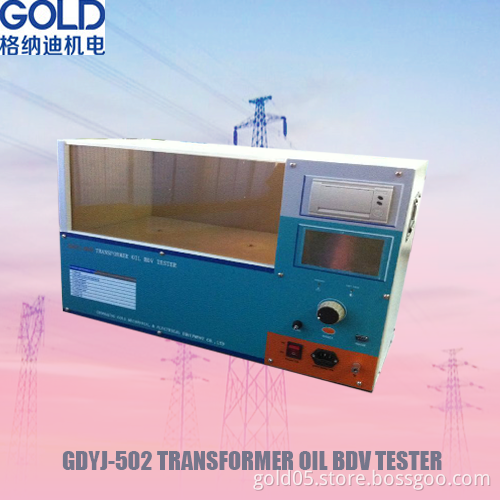

GDYJ-502 Single Vessel Insulating Oil Dielectric Strength Tester ASTM D877

Introduction:

GDYJ-502 Insulating Oil Dielectric Tester is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method .LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse .
GDYJ-502 Insulating Oil Dielectric Tester is very easy for customers to measure the breakdown voltage of all kinds of oil. You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.

Functions:

1	Insulating oil breakdown test of user-defined
2	Proof test
3	IEC60156/IS6792/BS5874 test
4	ASTM D1816 standard test ASTM D877 standard test
5	5 minutes standard test
6	Manual test
7	Calibration interface for customers, result print
8	Uploading data to PC and making word report automatically.

Technical Index:

1	Output voltage:AC 0V~100KV
2	Rate of voltage rise: 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
3	Max test times setting for user-defined mode: 9
4	Stir time setting for user-defined mode: 0~999s
5	Waiting time setting for user-defined mode: 0~999s
6	Test error: 3%RDG+0.3%FS
7	Display: 256´128 LCD
8	Maximum storage capacity: 100 groups of test data
9	Power supply : AC220V±10%, 50Hz/60Hz
10	Environment temperature: 0-50°C
11	Relative humidity ≤80%RH
12	Weight:41kg
13	Size: 620 mm´430mm´330mm
