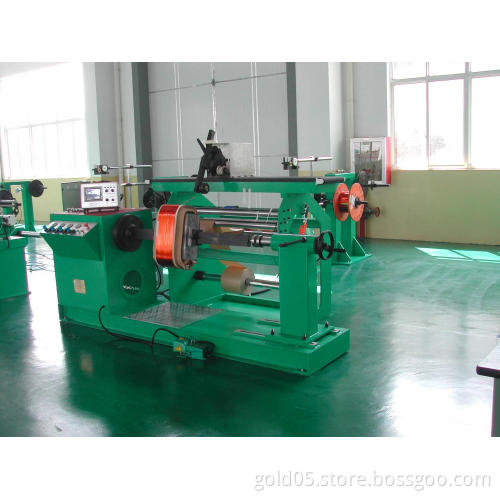

GD-050B Automatic Electric Motor Dry-type Transformer Coil Winding Machine
- Payment Type:
- T/T, L/C, D/A
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Chongqing |
|---|---|
| Payment Type: | T/T,L/C,D/A |
| Incoterm: | FOB |
| Certificate: | CE SGS |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description
• GD-050B Automatic Dry-type Transformer Coil Winding Machine adopts computer CNC control operation.
• GD-050B Automatic Dry-type Transformer Coil Winding Machine is driven by column decelerating machines and equipped with precise wire arrangement of stepping motor.
• GD-050B Automatic Dry-type Transformer Coil Winding Machine is applicable to the winding production of all kinds of coarse wire diameter and flat type copper wires for the transformers.
Main Features
» GD-050B Automatic Transformer Winding Machine has the characteristics of the novel contour, the reasonable structure, the heavy machine body and the excellent stability. And it is manufactured by quality steel products.
» The CNC digital inverter control system is applied in this machine, and the machines have the characteristics of easy operation, rare maintenance and little malfunctions.
» The variable frequency drive type is applied. The winding displacement is aided with precise servo driven type in low noise, leading to a fast and precise follow. The accessories are from the worldwide brands with high performance, long service period and adaptable working environment.
» The extraction and storage can reach 1000 steps, and cylinder number, width, wire diameter, direction, speed, and some other parameters can be set. Besides, precise count, backup data for power fail, overload and over-current protection, strong anti-interference are possessed.
Product Specifications
|
1
|
The spindle number
|
1-axis
|
|
2
|
Speed of main axis
|
350RPM(adjustable)
|
|
3
|
Control method
|
CNC digital inverter control systemis applied
|
|
4
|
Power
|
2HP
|
|
5
|
Main shaft fixture diameter
|
Φ30mm
|
|
6
|
Wire size range
|
Φ3.5-6.0mm
|
|
7
|
OD
|
200-500MM
|
|
9
|
Working voltage
|
220VAC or 3*380VAC
|
|
10
|
Equipment size
|
L/1300*W/830*H/1300mm
|
|
11
|
Equipment weight
|
134kg
|
